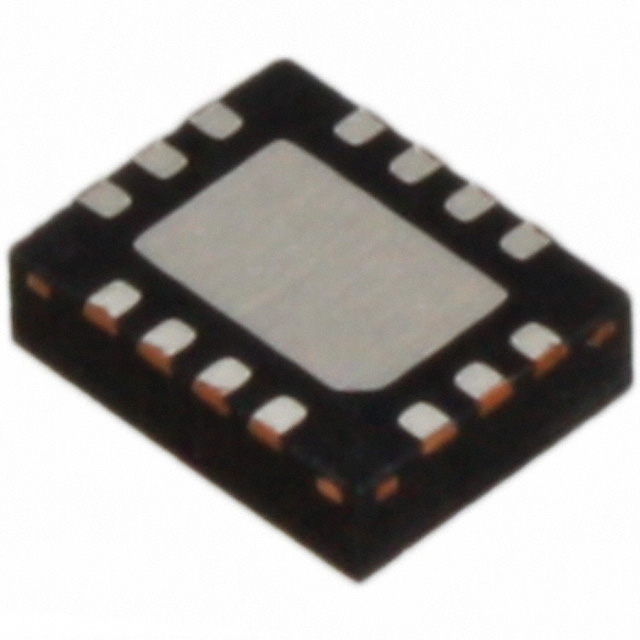

ASEMDHC-LR-T3

Manufacturer :

Abracon

Product Category :

Pin Configurable/Selectable Oscillators

Base Resonator :

MEMS

Mounting Style :

SMD/SMT

Size / Dimension :

0.126Lx0.098W 3.20mmx2.50mm

Operating Temperature :

-40°C~85°C

Operating Supply Voltage :

3.6V

Product Category :

Standard Clock Oscillators

Fall Time-Max :

0.4ns

Manufacturer :

ABRACON

Output Format :

HCSL

Pin Count :

14

RoHS Status :

RoHS Compliant

Mounting Feature :

Surface Mount

Factory Lead Time :

15 Weeks

Frequency - Output 1 :

100MHz 106.25MHz 125MHz 156.25MHz

Supplier Package :

SMD

Series :

ASEMDHC, Pure Silicon™

Power Supplies :

2.5/3.3V

Current - Supply (Disable) (Max) :

23mA

Maximum Operating Temperature :

+ 85 C

Qualification Status :

Not Qualified

Operating Frequency :

156.25MHz

Output Level :

HCSL

Product :

Dual Output

Function :

Enable/Disable

Surface Mount :

yes

Frequency Aging :

?5(1st) ppm/Year

Current - Supply (Max) :

60mA Typ

Load Capacitance :

2pF

Height :

0.035 0.90mm

Frequency - Output 2 :

25MHz 50MHz 100MHz 125MHz 156.25MHz

Product Status :

Active

Type :

XO (Standard)

Published :

2011

Max Supply Current :

60mA

Mounting :

Surface Mount

Termination :

SMD/SMT

Brand :

ABRACON

Symmetry-Max :

52/48%

Minimum Operating Temperature :

- 40 C

Frequency Stability :

±25ppm

Packaging :

Tape and Reel (TR)

Category :

MEMS

Package :

Tape and Reel (TR)

Voltage - Supply :

2.25V~3.6V

Physical Dimension :

3.2mm x 2.5mm x 0.85mm

Rise Time-Max :

0.4ns

RoHS :

Details

Length :

3.2 mm

Pbfree Code :

yes

Frequency :

156.25MHz

Package / Case :

14-VFQFN Exposed Pad

Width :

2.5 mm

Output :

HCSL

Number of Terminations :

14

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Product Type :

MEMS Oscillators

Termination Style :

SMD/SMT

Standard Frequency :

10 to 460 MHz
