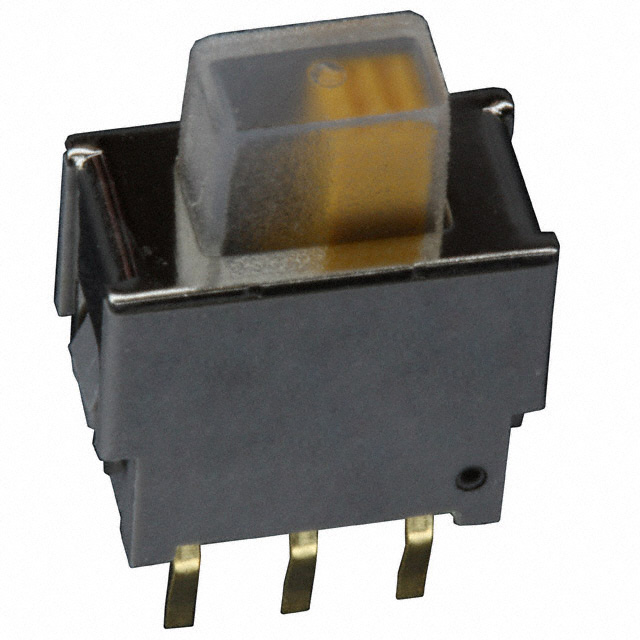

ASE2D-2M-10-Z
Or copy the link below:
- Mfr.Part #
- ASE2D-2M-10-Z
- Manufacturer
- Nidec Copal Electronics
- Package / Case
- Datasheet
- Download
- Description
- SWITCH SLIDE DPDT 50MA 60V
- Stock
- 5,318
- In Stock ：
- 5,318
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Nidec Copal Electronics
- Product Category :
- Switch Travel :
- 2.20mm
- Packaging :
- Tray
- Contact (DC) Max Rating R Load :
- 0.05A@60VDC
- Body Height :
- 8.001mm
- JESD-609 Code :
- e4
- Contact Current Rating :
- 50mA
- PCB Hole Count :
- 6
- Voltage - Rated AC :
- 60V
- ECCN Code :
- EAR99
- Length - Termination :
- 0.13 inch
- Body Breadth :
- 5.0038 mm
- Operating Force :
- 70 ~ 500gf
- Termination Style :
- PC Pin
- Actuator Length :
- 2.80mm
- Actuator Type :
- Standard
- Feature :
- Washable
- Dielectric Withstanding Voltage :
- 250VAC V
- Operating Temperature :
- -20°C~85°C
- Contact Finish :
- Gold
- Reach Compliance Code :
- Unknown
- Factory Lead Time :
- 9 Weeks
- Current Rating (Amps) :
- 50mA AC/DC
- Current Rating :
- 50mA
- Published :
- 2016
- Insulation Resistance :
- 500000000Ohm
- Orientation :
- Vertical
- Switch Function :
- On-On
- Contact (DC) Max Power Rating R Load :
- 0.4VA@48VDC
- Voltage - Rated DC :
- 60V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- Lead Free :
- Lead Free
- Series :
- ASE
- Contact Timing :
- Non-Shorting (BBM)
- Number of Positions :
- 1
- Termination :
- PC Pin
- Mounting Type :
- Through Hole
- Mount :
- Through Hole
- Contact Style :
- Non-Shorting
- Electrical Life :
- 10,000 Cycles
- Contact Current(AC)-Max :
- 0.05A
- Contact (AC) Max Rating R Load :
- 0.05A@60VAC
- Switch Type :
- SLIDE SWITCH
- Contact Current(DC)-Max :
- 0.05A
- Contact Resistance :
- 0.05mOhm
- Body Length or Diameter :
- 9.4996mm
- Circuit :
- DPDT
- Datasheets
- ASE2D-2M-10-Z
