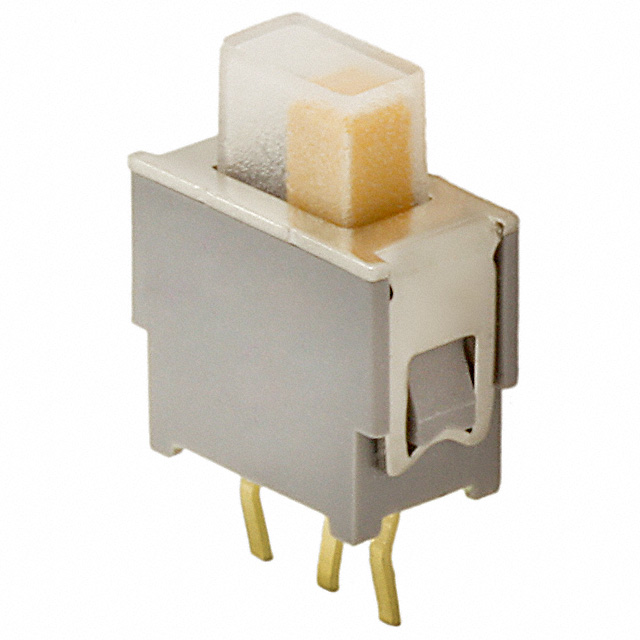

ASE1D-2M-10-Z
Or copy the link below:
- Mfr.Part #
- ASE1D-2M-10-Z
- Manufacturer
- Nidec Copal Electronics
- Package / Case
- Datasheet
- Download
- Description
- SWITCH SLIDE SPDT 50MA 60V
- Stock
- 83,897
- In Stock ：
- 83,897
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Nidec Copal Electronics
- Product Category :
- Current Rating (Amps) :
- 50mA AC/DC
- Factory Lead Time :
- 9 Weeks
- Packaging :
- Tray
- Contact (DC) Max Rating R Load :
- 0.05A@60VDC
- Termination :
- PC Pin
- Electrical Life :
- 10,000 Cycles
- Number of Positions :
- 1
- Actuator Length :
- 2.80mm
- Contact Style :
- Non-Shorting
- RoHS Status :
- ROHS3 Compliant
- Mounting Type :
- Through Hole
- Switch Travel :
- 2.20mm
- Lead Free :
- Lead Free
- Termination Style :
- PC Pin
- Switch Function :
- On-On
- Insulation Resistance :
- 500000000Ohm
- PCB Hole Count :
- 3
- Reach Compliance Code :
- Unknown
- Contact Timing :
- Non-Shorting (BBM)
- Actuator Type :
- Standard
- Contact Current Rating :
- 50mA
- Operating Force :
- 70 ~ 500gf
- Contact Current(DC)-Max :
- 0.05A
- Feature :
- Washable
- Circuit :
- SPDT
- ECCN Code :
- EAR99
- Length :
- 9.5mm
- Dielectric Withstanding Voltage :
- 250VAC V
- Voltage - Rated AC :
- 60V
- Contact Finish :
- Gold
- Contact (AC) Max Rating R Load :
- 0.05A@60VAC
- JESD-609 Code :
- e4
- Orientation :
- Vertical
- Series :
- ASE
- Contact (DC) Max Power Rating R Load :
- 0.4VA@48VDC
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Resistance :
- 0.05mOhm
- Body Breadth :
- 5.0038 mm
- Switch Type :
- SLIDE SWITCH
- Operating Temperature :
- -20°C~85°C
- Height :
- 10.8mm
- Contact Current(AC)-Max :
- 0.05A
- Width :
- 5mm
- Mount :
- Through Hole
- Voltage - Rated DC :
- 60V
- Current Rating :
- 50mA
- Datasheets
- ASE1D-2M-10-Z
