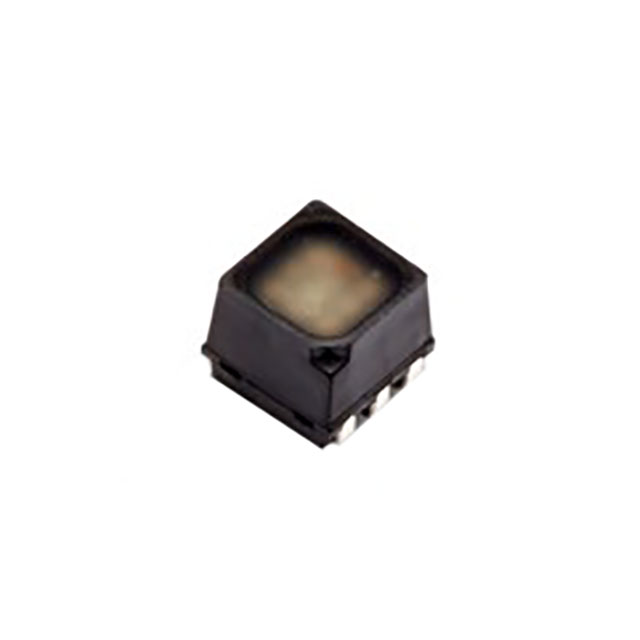

ASCB-UTC2-0A30B

Manufacturer :

Broadcom

Product Category :

Series :

ASCB-UTC2

Wavelength - Peak :

628nm Red, 516nm Green, 466nm Blue

Features :

-

Vf - Forward Voltage :

2.1 V, 2.8 V, 2.9 V

Supplier Device Package :

6-PLCC

Width :

2.7 mm

Brand :

Broadcom / Avago

Product Category :

Standard LEDs - SMD

Configuration :

-

Product Status :

Active

Product :

RGB LEDs

Minimum Operating Temperature :

- 40 C

Luminous Intensity :

530 mcd, 1000 mcd, 210 mcd

Length :

2.8 mm

Lens Dimensions :

2.8 mm x 2.7 mm

Mounting Type :

Surface Mount

Power Rating :

120 mW, 102 mW, 102 mW

Voltage - Forward (Vf) (Typ) :

2.1V Red, 2.8V Green, 2.9V Blue

Product Type :

LED - Standard

Orientation :

Top View

Lens Color :

-

Viewing Angle :

105°

Current - Test :

20mA Red, 20mA Green, 20mA Blue

Wavelength - Dominant :

621nm Red, 522nm Green, 470nm Blue

Lens Transparency :

-

Maximum Operating Temperature :

+ 85 C

Package / Case :

6-SMD, J-Lead

Height (Max) :

2.60mm

Lens Size :

-

Size / Dimension :

2.70mm L x 2.80mm W

RoHS :

Details

Millicandela Rating :

530mcd Red, 1000mcd Green, 210mcd Blue

Lens Style :

Oval with Flat Top

Height :

2.4 mm

Manufacturer :

Broadcom Limited

Packaging :

Cut Tape

Package :

Digi-Reel?

Mounting Style :

SMD/SMT

Illumination Color :

RGB

Color :

Red, Green, Blue (RGB)

Subcategory :

LEDs

Base Product Number :

ASCB-UTC2
