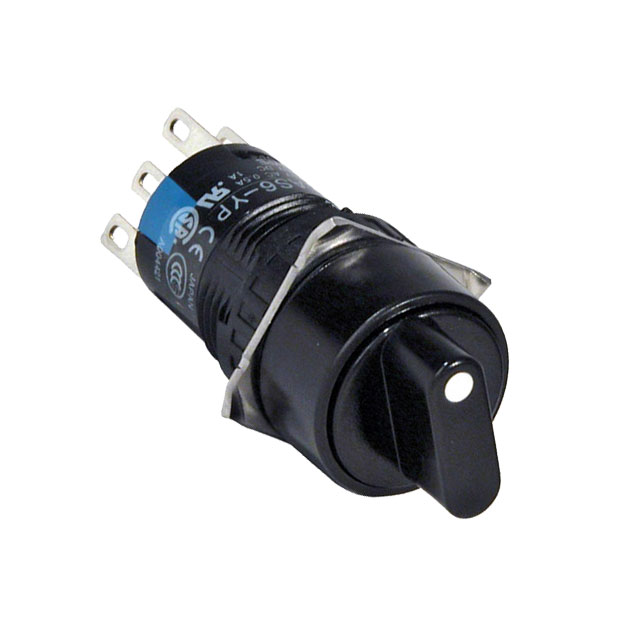

AS6M-2Y2P

Or copy the link below:

Mfr.Part #: AS6M-2Y2P

Manufacturer: IDEC

Package / Case

Datasheet: Download

Description: 16MM SELECTOR SWITCH

Stock: 96

In Stock ：: 96

Request A Quote(RFQ)

* Fullname:

* Company:

* E-Mail:

Phone:

Comment:

* Quantity:

Manufacturer :: IDEC
Product Category :

Published :: 2005

Illumination Type :: Illuminated

ECCN Code :: EAR99

Number of Terminations :: 6

Index Angle :: 90 °

Diameter :: 18mm

Contact Resistance :: 50mOhm

Circuit :: DPDT

Termination Style :: Solder, Quick Connect - 0.110 (2.8mm)

Illumination :: Non-Illuminated

Length - Termination :: 0.315 inch

Number of Poles :: 2

Insulation Resistance :: 100000000Ohm

Current Rating (Amps) :: 1A AC/DC

Type :: Standard

Moisture Sensitivity Level (MSL) :: Not Applicable

Ratings :: IP40

Series :: A6

REACH SVHC :: Unknown

Height :: 38.5mm

Approval Agency :: CCC, CE, CSA, cULus

Max Voltage Rating (DC) :: 250V

Mounting Type :: Panel Mount

Orientation :: Straight

Termination :: Solder

Mechanical Life :: 250,000 Cycles

Operating Temperature :: -25°C~55°C

Voltage - Rated AC :: 120V

Voltage - Rated DC :: 24V

Mount :: Panel

Contact Current Rating :: 1A

Switch Function :: On-On

Current Rating :: 1A

Factory Lead Time :: 4 Weeks

Contact Current(AC)-Max :: 0.5A

Ingress Protection :: IP65 - Dust Tight, Oil and Water Resistant

Voltage - Rated :: 250V

Number of Positions :: 2

Max Voltage Rating (AC) :: 250V

RoHS Status :: ROHS3 Compliant

Panel Cutout Dimensions :: Circular - 16.20mm Dia

Depth Behind Flange :: 30.00mm

Electrical Life :: 100,000 Cycles

Contact Material :: Gold, Silver

Datasheets: AS6M-2Y2P

AS6M-2Y2P Documents

Introducing IDEC AS6M-2Y2P from Chip IC,where excellence meets affordability. This product stands out with its Number of Terminations：6, Circuit：DPDT, Type：Standard, Mounting Type：Panel Mount, Operating Temperature：-25°C~55°C, AS6M-2Y2P pinout, AS6M-2Y2P datasheet PDF, AS6M-2Y2P amp .Beyond IDEC AS6M-2Y2P ,we also offer F9TYP5E5EANF093, F9TYP5E5EANF094, F9TYP5E5EANF095, Our vast inventory has you covered. Contact us now for immediate solutions.
