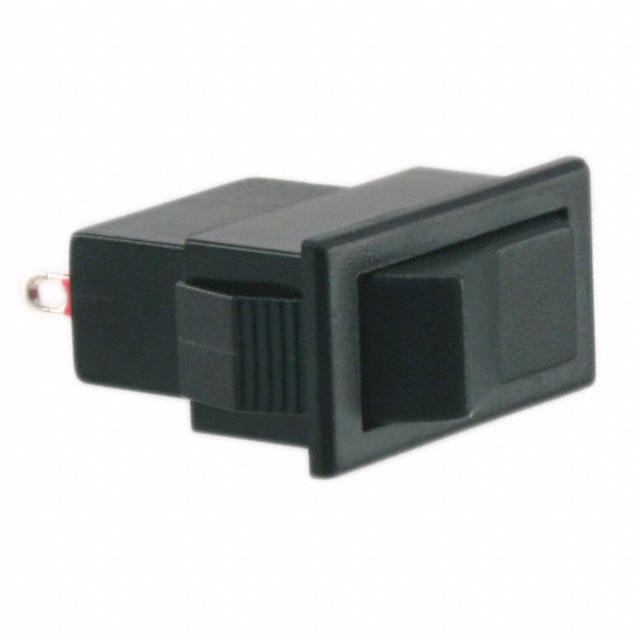

AS36S010010

Manufacturer :

APEM Inc.

Product Category :

Operating Temperature :

-40°C~85°C

Electrical Life :

50,000 Cycles

Contact Plating :

Gold

Body Length or Diameter :

13.2mm

Pbfree Code :

yes

Sealing :

EPOXY TERMINAL SEALED

Max Voltage Rating (AC) :

250V

ECCN Code :

EAR99

Panel Cutout Dimensions :

Rectangular - 18.65mm x 8.90mm

JESD-609 Code :

e4

Contact Material :

Silver

Contact (AC) Max Rating R Load :

4A@125VAC

Contact Resistance :

10MOhm

Contact Current Rating :

4A

Current Rating (Amps) :

4A AC

Color - Actuator/Cap :

Black

Package / Case :

405

Switch Type :

ROCKER SWITCH

Voltage - Rated AC :

125V

Illumination Type :

Illuminated

Mount :

Panel, Snap in

Series :

AS

Orientation :

Straight

Actuator Type :

Concave (Standard V)

Color :

Red

REACH SVHC :

Unknown

Feature :

Epoxy Sealed Terminals

Body Breadth :

6.8 mm

Actuator Material :

Polyamide

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Bulk

Width :

19.6mm

Throw Configuration :

SPDT, SPST

Termination Style :

Solder Lug

Switch Function :

On-On

Mounting Type :

Panel Mount, Snap-In

Lead Free :

Lead Free

Current Rating :

4A

Termination :

Lug

Height :

18.9mm

Approval Agency :

CSA, UL

Actuator Marking :

No Marking

Contact Current(AC)-Max :

4A

Circuit :

SPDT

RoHS Status :

ROHS3 Compliant

HTS Code :

8536.50.90.65

Factory Lead Time :

9 Weeks
