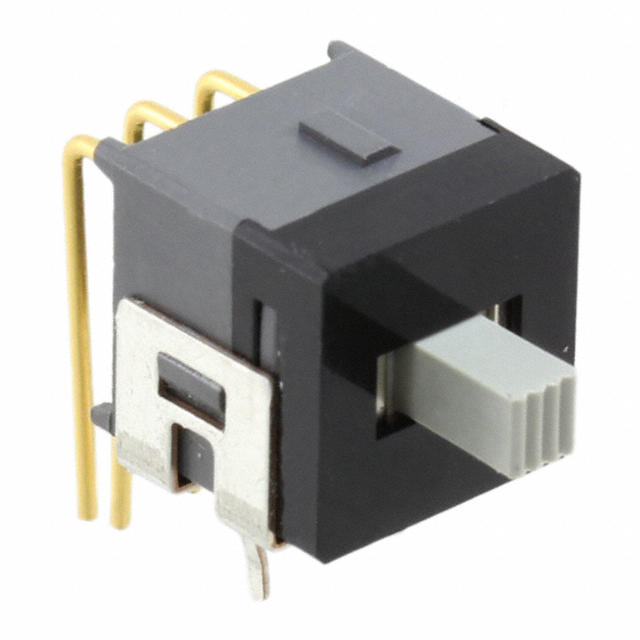

AS23CH
Or copy the link below:
- Mfr.Part #
- AS23CH
- Manufacturer
- NKK Switches
- Package / Case
- Datasheet
- Download
- Description
- SWITCH SLIDE DPDT 0.4VA 28V
- Stock
- 12,400
- In Stock ：
- 12,400
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NKK Switches
- Product Category :
- Circuit :
- DPDT
- Actuator Type :
- Standard
- RoHS Status :
- ROHS3 Compliant
- Body Breadth :
- 10.0076 mm
- Series :
- AS
- Packaging :
- Tray
- Dielectric Withstanding Voltage :
- 500VAC V
- Contact Finish :
- Gold
- Body Length or Diameter :
- 9.8044mm
- Termination Style :
- PC Pin
- Length - Termination :
- 0.122 inch
- Factory Lead Time :
- 10 Weeks
- Switch Function :
- On-Off-On
- Mechanical Life :
- 50,000 Cycles
- Pbfree Code :
- yes
- Contact Timing :
- Non-Shorting (BBM)
- Operating Force :
- 260gf
- Actuator Material :
- Polyamide (PA), Nylon, Glass Filled
- Voltage - Rated AC :
- 28V
- Contact Style :
- Non-Shorting
- Voltage - Rated DC :
- 28V
- Operating Temperature :
- -30°C~85°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact (DC) Max Power Rating R Load :
- 0.4VA@28VDC
- Switch Travel :
- 2.50mm
- Mounting Type :
- Through Hole, Right Angle
- Body Height :
- 12.4206mm
- Actuator Length :
- 3.80mm
- Orientation :
- RIGHT ANGLE
- Termination :
- PC Pin
- Published :
- 2006
- Insulation Resistance :
- 500000000Ohm
- Feature :
- Epoxy Sealed Terminals
- Electrical Life :
- 50,000 Cycles
- Contact Material :
- Phosphor Bronze
- Mount :
- Through Hole
- Illumination Type :
- Non-Illuminated
- Contact Resistance :
- 0.05mOhm
- Current Rating (Amps) :
- 0.4VA AC/DC
- Datasheets
- AS23CH
