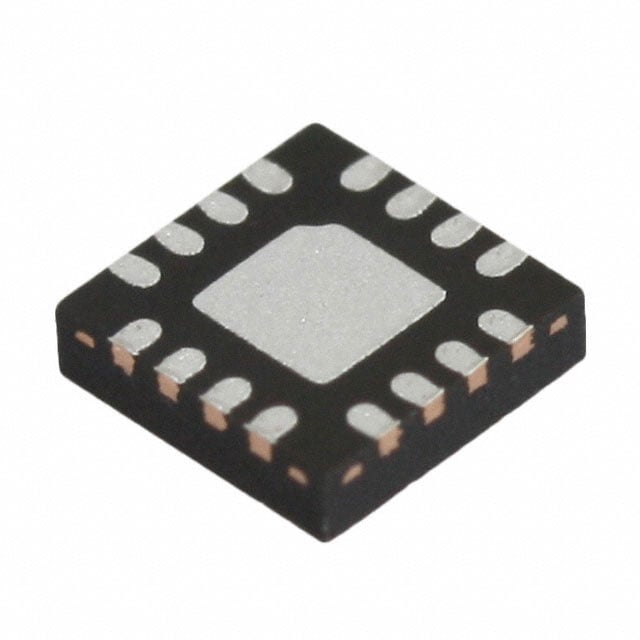

AS1753V-T

Manufacturer :

ams

Product Category :

Analog Switches, Multiplexers, Demultiplexers

Multiplexer/Demultiplexer Circuit :

1:1

Pbfree Code :

yes

Operating Temperature :

-40°C~85°C TA

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Channel Capacitance (CS(off), CD(off)) :

45pF 45pF

Reach Compliance Code :

Unknown

Number of Circuits :

4

Charge Injection :

2pC

RoHS Status :

RoHS Compliant

Operating Supply Current :

100nA

Switch Time (Ton, Toff) (Max) :

22ns, 14ns

Crosstalk :

-80dB @ 1MHz

Mounting Type :

Surface Mount

Switch Circuit :

SPST - NO/NC

Mount :

Surface Mount

Voltage - Supply, Single (V+) :

1.6V~3.6V

Package / Case :

16-WFQFN Exposed Pad

Packaging :

Tape and Reel (TR)

Throw Configuration :

SPST

Resistance :

900mOhm

Current - Leakage (IS(off)) (Max) :

2.5nA

Supply Type :

Single

On-State Resistance (Max) :

900mOhm

Channel-to-Channel Matching (ΔRon) :

30m Ω
