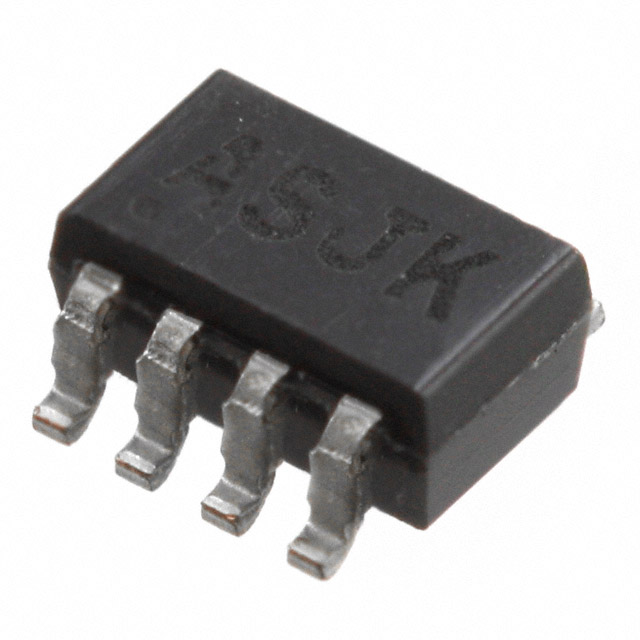

AS1742H-T

Manufacturer :

ams

Product Category :

Analog Switches, Multiplexers, Demultiplexers

REACH SVHC :

No SVHC

Throw Configuration :

SPST

Voltage - Supply, Single (V+) :

1.6V~3.6V

Packaging :

Tape and Reel (TR)

Switch Circuit :

SPST - NC

Crosstalk :

-100dB @ 1MHz

Number of Pins :

8

Channel Capacitance (CS(off), CD(off)) :

35pF 35pF

Supply Type :

Single

Switch Time (Ton, Toff) (Max) :

22ns, 14ns

Number of Circuits :

2

Channel-to-Channel Matching (ΔRon) :

20m Ω

Charge Injection :

5pC

Multiplexer/Demultiplexer Circuit :

1:1

Bandwidth :

130MHz

Turn On Delay Time :

13 ns

RoHS Status :

RoHS Compliant

Package / Case :

SOT-23-8

On-State Resistance (Max) :

800mOhm

Turn-Off Delay Time :

7 ns

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current - Leakage (IS(off)) (Max) :

1nA

Operating Temperature :

-40°C~85°C TA

Operating Supply Current :

10nA

Resistance :

800mOhm

Mounting Type :

Surface Mount
