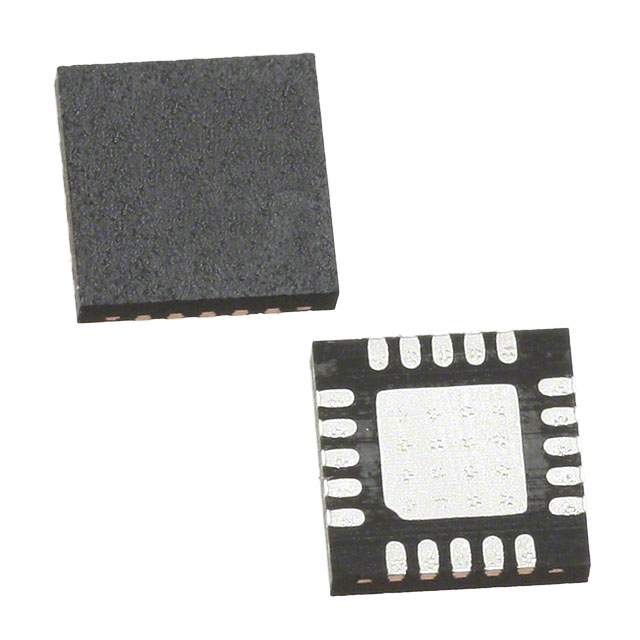

AS1543-BQFT

Manufacturer :

ams

Product Category :

Analog to Digital Converters (ADC)

Number of Pins :

20

Sampling Rate (Per Second) :

1m

Package / Case :

20-WQFN Exposed Pad

Resolution :

1.5 B

Configuration :

MUX-S/H-ADC

RoHS Status :

RoHS Compliant

Length :

4mm

Min Operating Temperature :

-40°C

Number of Inputs :

4, 8

Data Interface :

SPI, DSP

Min Supply Voltage :

2.75V

Voltage - Supply, Digital :

2.7V~5.25V

Architecture :

SAR

Integral Nonlinearity (INL) :

1 LSB

Interface :

SPI, Serial

Sampling Rate :

1 ksps

Number of A/D Converters :

1

Number of Bits :

12

Width :

4mm

Operating Temperature :

-40°C~85°C

Voltage - Supply, Analog :

2.7V~5.25V

Max Operating Temperature :

85°C

Supply Type :

Single

Supplier Device Package :

20-TQFN (4x4)

Ratio - S/H:ADC :

1:1

REACH SVHC :

No SVHC

Mounting Type :

Surface Mount

Reference Type :

External

Packaging :

Tape and Reel (TR)

Max Power Dissipation :

18.4mW

Lead Free :

Lead Free

Input Type :

Differential, Single Ended

Max Supply Voltage :

5.25V

Number of Converters :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Nominal Supply Current :

3mA

Number of Channels :

8

Differential Nonlinearity :

1.2 LSB

Height :

730μm
