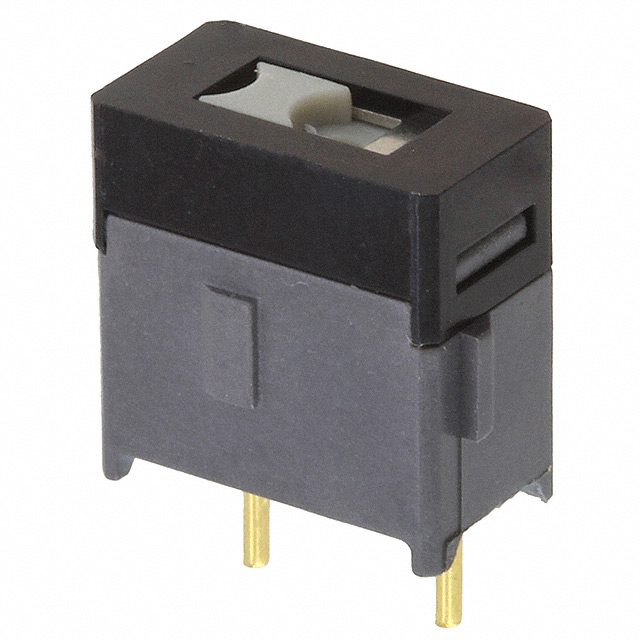

AS11BP
Or copy the link below:
- Mfr.Part #
- AS11BP
- Manufacturer
- NKK Switches
- Package / Case
- Datasheet
- Download
- Description
- SWITCH SLIDE SPST 0.4VA 28V
- Stock
- 131
- In Stock ：
- 131
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NKK Switches
- Product Category :
- Illumination Type :
- Non-Illuminated
- Termination Style :
- PC Pin
- Packaging :
- Tray
- Insulation Resistance :
- 500000000Ohm
- PCB Hole Count :
- 3
- Series :
- AS
- Mounting Type :
- Through Hole
- Body Height :
- 12.192mm
- Insulation Material :
- CARBON COMPOSITE POLYMER
- Contact Resistance :
- 0.05mOhm
- Contact Style :
- Non-Shorting
- Body Length or Diameter :
- 9.8044mm
- Number of Positions :
- 3
- Voltage - Rated DC :
- 28V
- Contact Finish :
- Gold
- Body Breadth :
- 5.3848 mm
- Published :
- 2006
- Factory Lead Time :
- 5 Weeks
- Current Rating (Amps) :
- 0.4VA AC/DC
- Mount :
- Through Hole
- Feature :
- Epoxy Sealed Terminals
- Actuator Type :
- Flush
- Electrical Life :
- 50,000 Cycles
- Mechanical Life :
- 50,000 Cycles
- JESD-609 Code :
- e4
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Dielectric Withstanding Voltage :
- 500VAC V
- Switch Travel :
- 2.50mm
- Termination :
- PC Pin
- Circuit :
- SPST
- Contact (DC) Max Power Rating R Load :
- 0.4VA@28VDC
- ECCN Code :
- EAR99
- Switch Function :
- On-Off
- Pbfree Code :
- yes
- Solderability :
- WAVE
- Operating Temperature :
- -30°C~85°C
- Contact Material :
- Phosphor Bronze
- Voltage - Rated AC :
- 28V
- Switch Type :
- SLIDE SWITCH
- Contact Timing :
- Non-Shorting (BBM)
- Orientation :
- Vertical
- Actuator Material :
- Polyamide (PA), Nylon, Glass Filled
- RoHS Status :
- ROHS3 Compliant
- Length - Termination :
- 0.122 inch
- Actuator Color :
- White
- Operating Force :
- 260gf
- Datasheets
- AS11BP
AS11BP Documents
AS11BP datasheet pdf and Slide Switches product details from NKK Switches stock available at
