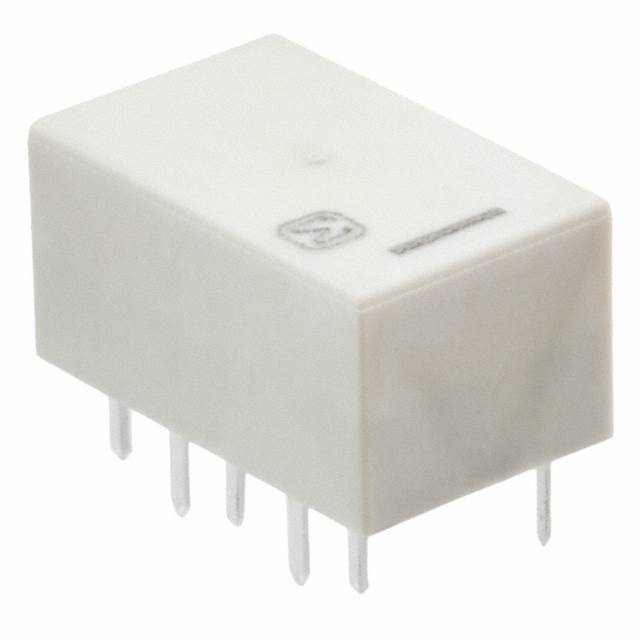

ARS144H

Manufacturer :

Panasonic

Product Category :

High Frequency (RF) Relays

Termination Style :

PC Pin

Must Release Voltage :

0.45VDC

Power Consumption :

200mW

Termination :

PC Pin

Pbfree Code :

yes

Contact Form :

SPDT (1 Form C)

Contact Current(DC)-Max :

0.5A

Contact Resistance :

100MOhm

Series :

ARS

JESD-609 Code :

e4

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Coil Voltage (DC) :

4.5V

Contact Material :

Gold Plating

Max Voltage Rating (DC) :

30V

Release Time :

6ms

Coil/Input Supply Type :

DC

Coil Current :

44.4mA

Operating Temperature :

-40°C~70°C

Coil Resistance :

101Ohm

Length :

14mm

VSWR :

1.4

Electrical Life :

1000000 Cycle(s)

RoHS Status :

RoHS Compliant

Relay Type :

RF

Max Current Rating :

500mA

Contact/Output Supply Type :

DC

Throw Configuration :

SPDT

Published :

2000

Height :

7.2mm

Input Power-Max (CW) :

1W

Impedance :

50Ohm

Mount :

PCB, Through Hole

Coil Type :

Non Latching

Width :

8.6mm

Relay Action :

Momentary

ECCN Code :

EAR99

Coil Voltage :

4.5VDC

Must Operate Voltage :

3.38VDC

Contact (DC) Max Rating R Load :

.5A@30VDC

Number of Pins :

7

Switching Current :

500mA

Frequency :

3GHz

Factory Lead Time :

12 Weeks

HTS Code :

8536.41.00.20

Terminal Finish :

Gold (Au)

Switching Voltage :

30VDC -Max

Depth :

8.6mm

Packaging :

Tube

Switching Time :

16 ms

Insertion Loss (dB) :

0.35 dB

Operate Time :

10ms

Mounting Type :

Through Hole

Packing Method :

Box
