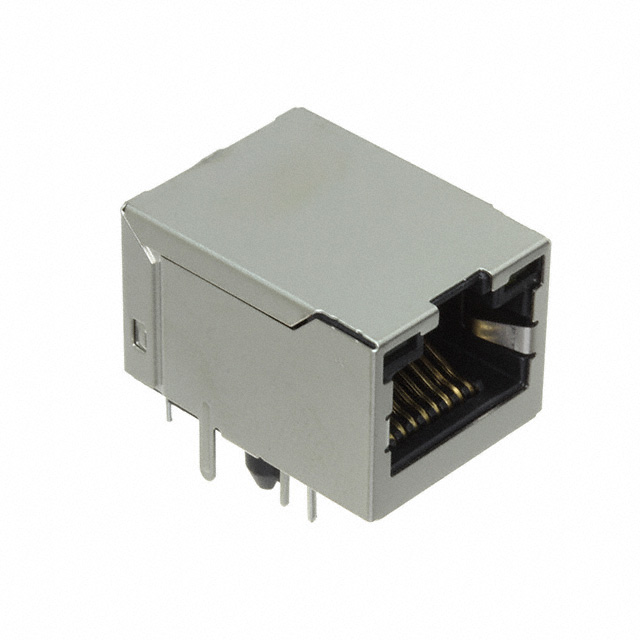

ARJM11D7-809-AB-EW2

Manufacturer :

Abracon

Product Category :

Modular Connector Jacks With Magnetics

Number of Positions :

8 Position

Applications :

2.5G Base-T, AutoMDIX

Shielding :

Shielded

Product :

Connectors

Product Height (mm) :

13.8(mm)

Series :

ARJM11

Gender :

F

Contact Plating :

Gold

Family :

ARJM11

LED Color :

Green - Yellow

Package :

Tray

Number of Cores per Jack :

8

Contact Finish :

Gold

Operating Temperature :

-40°C~85°C

Orientation :

90° Angle (Right)

Minimum Operating Temperature :

- 40 C

Subcategory :

Modular Connectors / Ethernet Connectors

Factory Lead Time :

11 Weeks

Operating Temp Range :

-40C to 85C

Mounting Angle :

RIGHT ANGLE

Body Orientation :

RIGHT ANGLE

Mounting Type :

Through Hole

Termination Style :

Solder Pin

Product Length (mm) :

15.9(mm)

Connector Type :

RJ45

Brand :

ABRACON

Voltage Rating :

-

Current Rating :

-

RoHS Status :

RoHS Compliant

Number of Rows :

1

Pitch (mm) :

1.27(mm)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Manufacturer :

ABRACON

Housing Color :

Black

Application :

2.5G Base-T

Color :

Black

Feature :

Board Lock

Mounting Style :

Through Hole

Housing Material :

--

Termination :

Solder

Product Depth (mm) :

21.3(mm)

Shield Material :

--

Number of Contacts :

8(POS)

USOC Codes :

RJ45

Maximum Operating Temperature :

+ 85 C

Coding :

-

RoHS :

Details

Packaging :

Tray

Number of Ports :

1

Type :

RJ-45

Configuration :

1x1

Tab Direction :

UP

Contact Finish Thickness :

6.00μin 0.152μm

Product Type :

Modular Connectors / Ethernet Connectors

Height Above Board :

0.543 13.80mm

Product Status :

Active

Product Category :

Modular Connectors / Ethernet Connectors

Features :

Board Lock

Positions Loaded :

8

Number of Terminals :

14

Termination Method :

Solder

Contact Material :

Phosphor Bronze

Published :

2013
