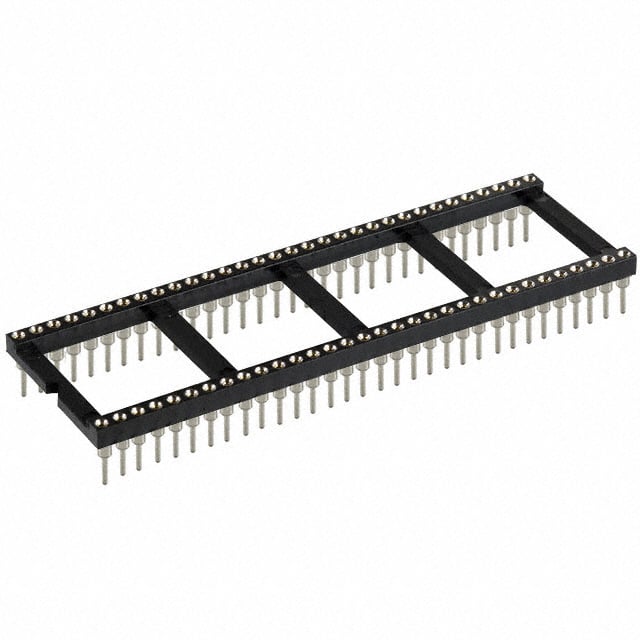

Images are for reference only.

Delivery：

Payment：

AR 64-HZL-TT

Or copy the link below:

Mfr.Part #: AR 64-HZL-TT

Manufacturer: ASSMANN WSW Components

Package / Case

Datasheet: Download

Description: CONN IC DIP SOCKET 64POS TIN

Stock: 39,287

In Stock ：: 39,287

Request A Quote(RFQ)

* Fullname:

* Company:

* E-Mail:

Phone:

Comment:

* Quantity:

Manufacturer :: ASSMANN WSW Components
Product Category :: IC Sockets

Pitch - Post :: 0.100 2.54mm

Terminal Pitch :: 2.54mm

Number of Positions or Pins (Grid) :: 64 (2 x 32)

Contact Style :: RND PIN-SKT

Mating Contact Pitch :: 0.1 inch

Body Breadth :: 1 inch

RoHS Status :: ROHS3 Compliant

PCB Contact Pattern :: RECTANGULAR

Number of Contacts :: 64

Current Rating (Amps) :: 3A

Operating Temperature :: -40°C~105°C

Material Flammability Rating :: UL94 V-0

Housing Material :: Thermoplastic, Polyester

Termination :: Solder

Insulation Resistance :: 10000000000Ohm

Factory Lead Time :: 23 Weeks

Pitch - Mating :: 0.100 2.54mm

JESD-609 Code :: e3

Feature :: Open Frame

HTS Code :: 8536.69.40.40

Contact Material - Post :: BERYLLIUM COPPER

ECCN Code :: EAR99

Mounting Type :: Through Hole

Type :: DIP, 0.9 (22.86mm) Row Spacing

Contact Finish Thickness - Post :: 200.0μin 5.08μm

Packaging :: Tube

PCB Contact Row Spacing :: 0.9 mm

Contact Finish - Mating :: Tin

Body Length or Diameter :: 3.2 inch

Additional Feature :: STANDARD: UL 94V-0

Contact Material - Mating :: BERYLLIUM COPPER

Moisture Sensitivity Level (MSL) :: 1 (Unlimited)

Contact Resistance :: 4mOhm

Datasheets: AR 64-HZL-TT

AR 64-HZL-TT Documents

Introducing IC Sockets ASSMANN WSW Components AR 64-HZL-TT from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature：-40°C~105°C, Mounting Type：Through Hole, Type：DIP, 0.9 (22.86mm) Row Spacing, AR 64-HZL-TT pinout, AR 64-HZL-TT datasheet PDF, AR 64-HZL-TT amp .Beyond IC Sockets ASSMANN WSW Components AR 64-HZL-TT ,we also offer 243-40-1-06, SA163000, 245-40-1-06, Our vast inventory has you covered. Contact us now for immediate solutions.

AR 64 HZL-TT datasheet pdf and Sockets for ICs, Transistors product details from Assmann WSW Components stock available at Xinshop
