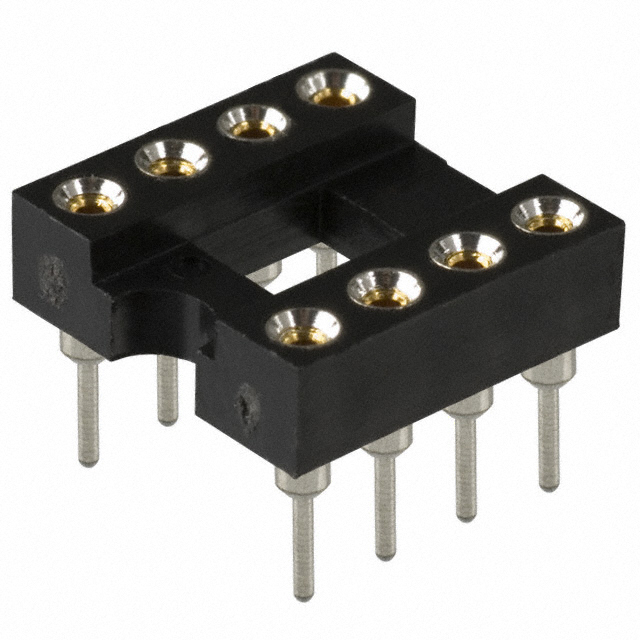

AR 08-HZL/01-TT
Or copy the link below:
- Mfr.Part #
- AR 08-HZL/01-TT
- Manufacturer
- ASSMANN WSW Components
- Package / Case
- Datasheet
- Download
- Description
- CONN IC DIP SOCKET 8POS GOLD
- Stock
- 31,836
- In Stock ：
- 31,836
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ASSMANN WSW Components
- Product Category :
- IC Sockets
- RoHS Status :
- ROHS3 Compliant
- Contact Style :
- RND PIN-SKT
- Number of Contacts :
- 8
- Contact Finish - Mating :
- Gold
- Contact Finish - Post :
- Tin
- HTS Code :
- 8536.69.40.40
- Pitch - Mating :
- 0.100 2.54mm
- Terminal Pitch :
- 2.54mm
- Mating Contact Pitch :
- 0.1 inch
- Contact Finish Thickness - Post :
- 200.0μin 5.08μm
- Packaging :
- Tube
- Insulation Resistance :
- 10000000000Ohm
- Pitch - Post :
- 0.100 2.54mm
- JESD-609 Code :
- e3
- Mounting Type :
- Through Hole
- ECCN Code :
- EAR99
- Type :
- DIP, 0.3 (7.62mm) Row Spacing
- Operating Temperature :
- -40°C~105°C
- Body Breadth :
- 0.4 inch
- PCB Contact Row Spacing :
- 0.3 mm
- Feature :
- Open Frame
- Housing Material :
- Thermoplastic, Polyester
- Body Length or Diameter :
- 0.4 inch
- Contact Finish Thickness - Mating :
- 10.0μin 0.25μm
- Factory Lead Time :
- 23 Weeks
- Number of Positions or Pins (Grid) :
- 8 (2 x 4)
- PCB Contact Pattern :
- RECTANGULAR
- Contact Resistance :
- 4mOhm
- Contact Material - Mating :
- BERYLLIUM COPPER
- Additional Feature :
- STANDARD: UL 94V-0
- Contact Material - Post :
- BERYLLIUM COPPER
- Material Flammability Rating :
- UL94 V-0
- Current Rating (Amps) :
- 3A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Solder
- Datasheets
- AR 08-HZL/01-TT
AR 08-HZL/01-TT Documents
AR 08-HZL/01-TT datasheet pdf and Sockets for ICs, Transistors product details from Assmann WSW Components stock available at Xinshop
