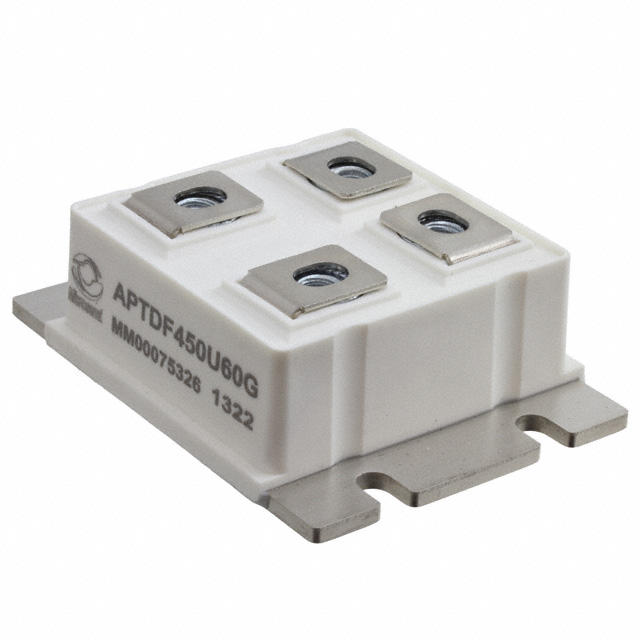

APTDF450U60G

Manufacturer :

Microchip Technology

Product Category :

Diodes - Rectifiers - Single

ECCN Code :

EAR99

Average Rectified Current :

500A

Factory Lead Time :

36 Weeks

Pin Count :

4

Diode Element Material :

SILICON

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Min Operating Temperature :

-40°C

Max Reverse Voltage (DC) :

600V

Application :

ULTRA FAST SOFT RECOVERY POWER

Element Configuration :

Common Cathode

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Current - Reverse Leakage @ Vr :

2.5mA @ 600V

Number of Terminations :

4

Max Operating Temperature :

150°C

Max Repetitive Reverse Voltage (Vrrm) :

600V

Radiation Hardening :

No

Terminal Form :

UNSPECIFIED

Package / Case :

LP4

Number of Elements :

1

Peak Non-Repetitive Surge Current :

5kA

Forward Current :

500A

Published :

1999

Case Connection :

Isolated

Number of Pins :

4

Diode Type :

Standard

Voltage - Forward (Vf) (Max) @ If :

1.8V @ 500A

RoHS Status :

RoHS Compliant

Lifecycle Status :

IN PRODUCTION (Last Updated: 1 month ago)

Reverse Recovery Time :

115 ns

Forward Voltage :

1.8V

Pbfree Code :

yes

Packaging :

Bulk

Peak Reverse Current :

2.5mA

Terminal Position :

UPPER

Mount :

Chassis Mount, Screw

Mounting Type :

Chassis Mount

Number of Phases :

1
