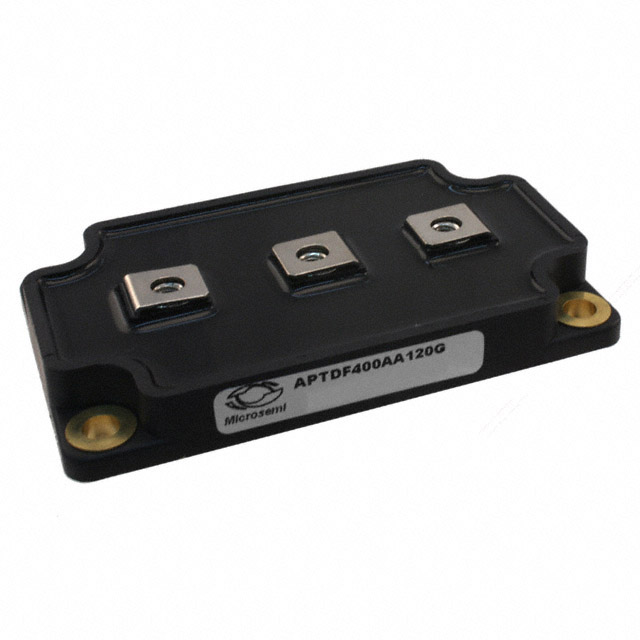

APTDF400AA120G

Share

Or copy the link below:

Mfr.Part #
APTDF400AA120G
Manufacturer
Microchip Technology
Package / Case
LP4
Datasheet
Download
Description
DIODE MODULE 1.2KV 470A SP6
Stock
35,992
In Stock :
35,992

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Microchip Technology
Product Category :
Diodes - Rectifiers - Arrays
ECCN Code :
EAR99
Max Reverse Voltage (DC) :
1.2kV
Average Rectified Current :
470A
Voltage - DC Reverse (Vr) (Max) :
1200V
Number of Elements :
2
Number of Phases :
1
Max Operating Temperature :
175°C
JESD-30 Code :
R-XUFM-X3
Radiation Hardening :
No
Terminal Finish :
TIN SILVER COPPER
Number of Pins :
4
Reverse Recovery Time :
385 ns
Current - Reverse Leakage @ Vr :
250μA @ 1200V
Application :
ULTRA FAST SOFT RECOVERY POWER
JESD-609 Code :
e1
Forward Current :
470A
Mounting Type :
Chassis Mount
Peak Reverse Current :
250μA
Number of Terminations :
3
RoHS Status :
RoHS Compliant
Forward Voltage :
3V
Element Configuration :
Common Anode
Voltage - Forward (Vf) (Max) @ If :
3V @ 400A
Package / Case :
LP4
Diode Element Material :
SILICON
Terminal Form :
UNSPECIFIED
Pin Count :
3
Diode Type :
Standard
Max Repetitive Reverse Voltage (Vrrm) :
1.2kV
Min Operating Temperature :
-40°C
Diode Configuration :
1 Pair Common Anode
Packaging :
Bulk
Case Connection :
Isolated
Mount :
Chassis Mount, Screw
Factory Lead Time :
36 Weeks
Speed :
Fast Recovery =< 500ns, > 200mA (Io)
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Peak Non-Repetitive Surge Current :
3kA
Terminal Position :
UPPER
Lifecycle Status :
IN PRODUCTION (Last Updated: 1 month ago)
Pbfree Code :
yes
Datasheets
APTDF400AA120G
Introducing Diodes - Rectifiers - Arrays Microchip Technology APTDF400AA120G from Chip IC,where excellence meets affordability. This product stands out with its Number of Pins:4, Mounting Type:Chassis Mount, Number of Terminations:3, Package / Case:LP4, APTDF400AA120G pinout, APTDF400AA120G datasheet PDF, APTDF400AA120G amp .Beyond Diodes - Rectifiers - Arrays Microchip Technology APTDF400AA120G ,we also offer BAS70-04,235, BAS70-04,215, BAS40-05,215, Our vast inventory has you covered. Contact us now for immediate solutions.

Microchip Technology APTDF400AA120G


Standard Rectifier Diode 1 Pair Common Anode Fast Recovery =< 500ns, > 200mA (Io) 470A 1.2kV-DC 2-Element LP4 Chassis Mount

APTDF400AA120G Overview


When the forward voltage is set to 3V, this device will operate.When the forward voltage is set to 470A, this device will operate.Devices like this one are powered with a reverse voltage peak of 250μA.

APTDF400AA120G Features


3V forward voltage
a peak voltage of 250μA
a reverse voltage peak of 250μA


APTDF400AA120G Applications


There are a lot of Microsemi Corporation
APTDF400AA120G applications of rectifier diode array.


  • Rectifier for drives applications
  • Crowbar applications
  • Rectifiers for UBS
  • Battery chargers
  • Rectifiers in switch mode power supplies (SMPS)
  • Free wheeling diode in low voltage converters
  • General Rectification
