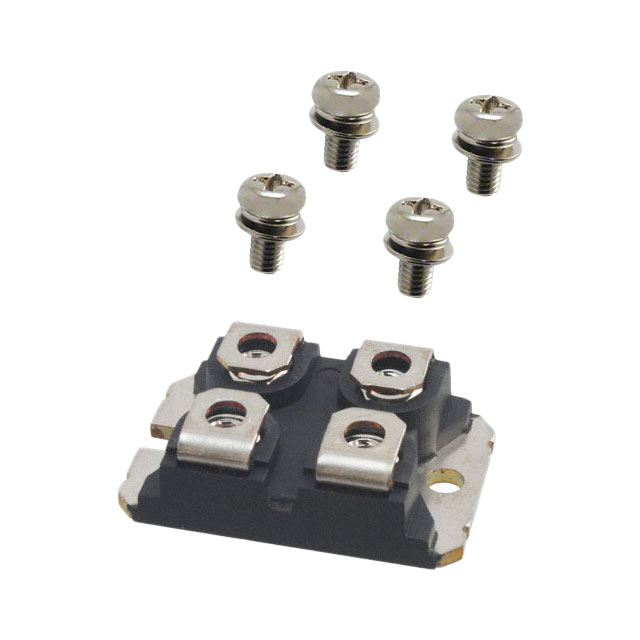

APT2X100D100J

Manufacturer :

Microchip Technology

Product Category :

Diodes - Rectifiers - Arrays

Max Reverse Voltage (DC) :

1kV

Mount :

Chassis Mount, Screw

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

JESD-609 Code :

e1

Voltage - Forward (Vf) (Max) @ If :

2.5V @ 100A

Packaging :

Tube

Average Rectified Current :

95A

Forward Current :

95A

Lead Free :

Lead Free

Current Rating :

95A

Number of Terminations :

4

Min Operating Temperature :

-55°C

Lifecycle Status :

IN PRODUCTION (Last Updated: 3 weeks ago)

Diode Type :

Standard

Terminal Position :

UPPER

Forward Voltage :

2.5V

Pbfree Code :

yes

Factory Lead Time :

25 Weeks

Number of Elements :

2

Application :

ULTRA FAST SOFT RECOVERY

Mounting Type :

Chassis Mount

Diode Configuration :

2 Independent

Reverse Test Voltage :

1000V

Operating Temperature - Junction :

-55°C~175°C

Diode Element Material :

SILICON

Max Repetitive Reverse Voltage (Vrrm) :

1kV

Reverse Recovery Time :

300 ns

Peak Non-Repetitive Surge Current :

1kA

Published :

1997

RoHS Status :

RoHS Compliant

Max Operating Temperature :

175°C

Number of Phases :

1

Voltage - Rated DC :

1kV

Radiation Hardening :

No

Terminal Form :

UNSPECIFIED

Number of Pins :

4

Package / Case :

ISOTOP

Peak Reverse Current :

250μA

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Current - Reverse Leakage @ Vr :

250μA @ 1000V

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Case Connection :

Isolated

Pin Count :

4

Voltage - DC Reverse (Vr) (Max) :

1000V
