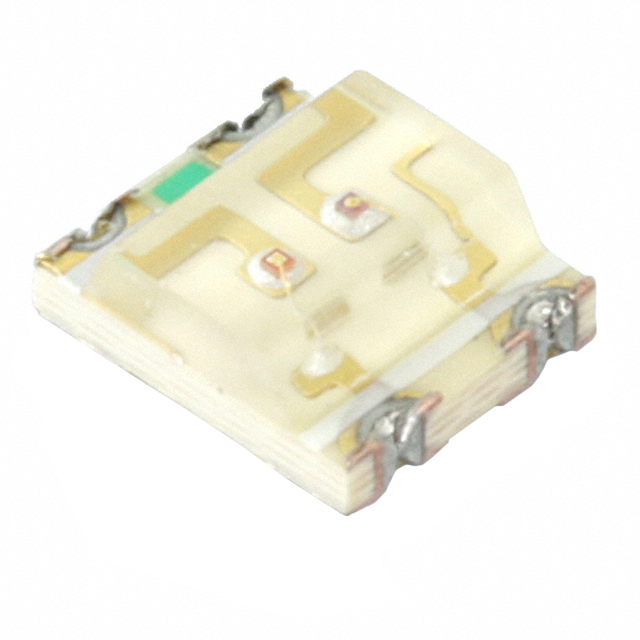

APB3025YSGC-F01

Manufacturer :

Kingbright

Product Category :

Published :

2008

ECCN Code :

EAR99

Number of Functions :

1

Current - Test :

20mA Green 20mA Yellow

Optoelectronic Device Type :

DUAL COLOR LED

RoHS Status :

ROHS3 Compliant

Millicandela Rating :

15mcd Green, 10mcd Yellow

Reverse Voltage-Max :

5V

Mounting Type :

Surface Mount

Min Operating Temperature :

-40°C

Lead Free :

Lead Free

Height :

1.1mm

Size / Dimension :

3.00mm Lx2.50mm W

Voltage - Forward (Vf) (Typ) :

2.2V Green 2.1V Yellow

Terminal Pitch :

2.7mm

Wavelength - Dominant :

568nm Green 588nm Yellow

Package / Case :

4-SMD, No Lead

Color :

Green, Yellow

Number of Terminations :

4

Lens Style :

Rectangle with Flat Top

Configuration :

Independent

Wavelength - Peak :

565nm Green 590nm Yellow

Forward Current :

20mA

Pbfree Code :

yes

Factory Lead Time :

12 Weeks

Mount :

Surface Mount

Viewing Angle :

120°

Lens Color :

Colorless

Shape :

RECTANGULAR

Lens Size :

2.00mmx2.50mm

Packaging :

Tape and Reel (TR)

Max Operating Temperature :

85°C

Power Rating :

62.5mW

Lens Transparency :

Clear

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Packing Method :

Tape and Reel

Luminous Intensity :

10 mcd

Illumination Color :

Green, Yellow

HTS Code :

8541.40.20.00

Forward Voltage-Max :

2.5V
