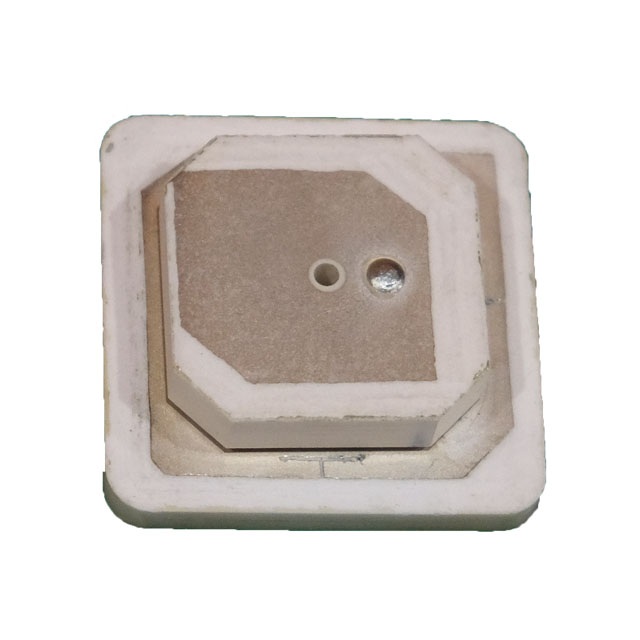

APAKM4012-C2G3D
Or copy the link below:
- Mfr.Part #
- APAKM4012-C2G3D
- Manufacturer
- Abracon
- Package / Case
- Datasheet
- Download
- Description
- RF ANT GNSS + SDARS STACK PATCH
- Stock
- 47,441
- In Stock ：
- 47,441
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Abracon
- Product Category :
- RF Antennas
- Cable Type :
- -
- Features :
- -
- VSWR :
- -
- Input Impedance :
- -
- Frequency Group :
- UHF 1GHz~2GHz UHF 2GHz~3GHz
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Style :
- Stacked
- Product Category :
- Antennas
- Gain :
- 2.7dBi, 4dBi
- Applications :
- Beidou, Galileo, GLONASS, GNSS, GPS, SDARS
- Application :
- Satellite Radio, Remote Technology/Monitoring, Surveying, Mapping System, Logistics
- Antenna Type :
- Ceramic Patch
- RoHS :
- Details
- Termination Style :
- Pin
- Manufacturer :
- ABRACON
- Length :
- 40 mm
- Minimum Operating Temperature :
- - 40 C
- Brand :
- ABRACON
- Antenna Connector Type :
- -
- Type :
- Passive Antenna
- Product Type :
- GPS Antennas - GNSS, GLONASS, Galileo, Beidou
- Height :
- 12.2 mm
- Product Status :
- Active
- Width :
- 40 mm
- Packaging :
- Tray
- Product :
- PCB Antennas
- Package :
- Tray
- Frequency Range :
- 1.561GHz~1.602GHz 2.32GHz~2.345GHz
- Maximum Operating Temperature :
- + 85 C
- Series :
- APAK
- RoHS Status :
- RoHS Compliant
- Termination :
- Solder
- RF Family/Standard :
- Navigation
- Mounting Type :
- Through Hole
- Mounting Style :
- PCB Mount
- Subcategory :
- Antennas
- Height (Max) :
- 0.480 12.20mm
- Frequency (Center/Band) :
- 1.561GHz 1.575GHz 1.589GHz 1.602GHz 2.332GHz
- Number of Bands :
- 2
- Ingress Protection :
- -
- Antenna Mounting :
- Adhesive
- Center Frequency :
- 1940.5 MHz, 1953.5 MHz, 1967 MHz, 1973.5 MHz
- Return Loss :
- -20dB, -6dB, -6dB, -30dB, -15dB
- Input Power :
- -
- Datasheets
- APAKM4012-C2G3D
APAKM4012-C2G3D Documents
2 Bands Ceramic Patch UHF 1GHz~2GHz UHF 2GHz~3GHz Through Hole Solder 1.561GHz 1.575GHz 1.589GHz 1.602GHz 2.332GHz 2.7dBi, 4dBi Tray 0.480 12.20mm Beidou, Galileo, GLONASS, GNSS, GPS, SDARS
APAKM4012-C2G3D Overview
Since it is a type Passive Antenna, RF Antenna has a wide range of applications.RF Antennas can be generalized using Through Hole.An Antenna RF from the series APAK.An enclosure of Tray is used to package the RF modulator.
APAKM4012-C2G3D Features
Type of Passive Antenna
With Through Hole
APAK series
APAKM4012-C2G3D Applications
There are a lot of Abracon LLC
APAKM4012-C2G3D RF Antennas applications.
- Inverters
- Satellites
- Transmission
- Cellphones
- Laptops
- Marine Navigation
- Avionics
- GPS
- GLONASS
- BeiDou
