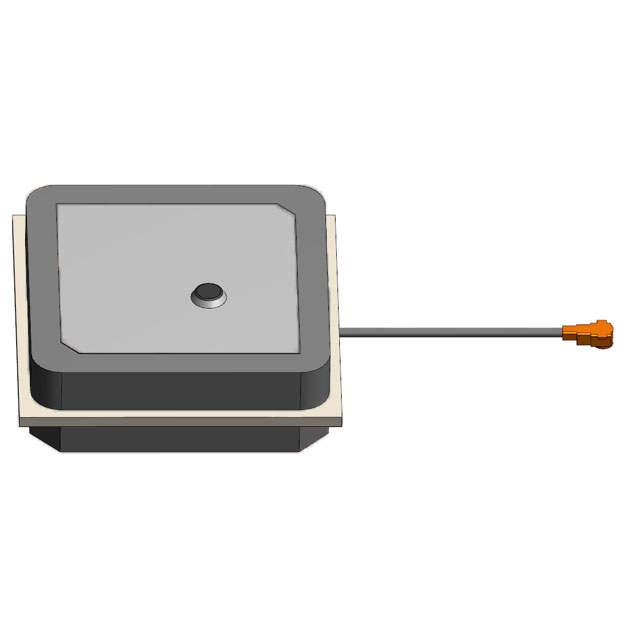

APAGM2704A-C2G

Manufacturer :

Abracon

Product Category :

RF Antennas

Length :

27 mm

Product Category :

Antennas

Center Frequency :

1575.42/1601.02(MHz)

Cable Type :

-

Mounting Style :

PCB Mount

Subcategory :

Antennas

Brand :

ABRACON

Product Status :

Active

Rad Hardened :

No

Input Impedance :

50Ohm

Frequency (Center/Band) :

1.575GHz 1.601GHz

Feature :

Cable - 30mm, LNA

Factory Lead Time :

6 Weeks

Packaging :

Tray

RoHS :

Details

Antenna Connector Type :

-

Impedance :

50(ohm)

Features :

Cable - 30mm, LNA

Bandwidth :

10 MHz

Termination :

U.FL (UMCC), IPEX MHF1

Series :

APAG

Height (Max) :

0.157 4.00mm

Number of Bands :

2

RF Family/Standard :

Navigation

Operating Temperature (Min) :

-40C

Ingress Protection :

-

Antenna Type :

Ceramic Patch

RoHS Status :

RoHS Compliant

Application :

Geotracking, Geolocation, Navigation, Industrial Monitors, Smart Agriculture, Transportation, Satellite Synchronization

Applications :

GLONASS, GNSS, GPS

Product Type :

GPS Antennas - GNSS, GLONASS, Galileo, Beidou

Minimum Operating Temperature :

- 40 C

Style :

Ceramic

VSWR :

1.02, 1.03

Maximum Operating Temperature :

+ 80 C

Frequency Range :

1.574GHz~1.576GHz 1.6GHz~1.602GHz

Return Loss :

-35.1dB, -37.9dB

Operating Temperature Classification :

COMMERCIAL

Height :

9.6 mm

Frequency Group :

UHF 1GHz~2GHz

Gain :

4.5DBI

VSWR (Max) :

2

Termination Style :

Pin

Operating Temperature (Max) :

80C

Type :

ACTIVE PATCH

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Product :

PCB Antennas

Input Power :

-

Mounting Type :

Surface Mount

Manufacturer :

ABRACON

Package :

Tray

Width :

27 mm

Antenna Mounting :

Adhesive
