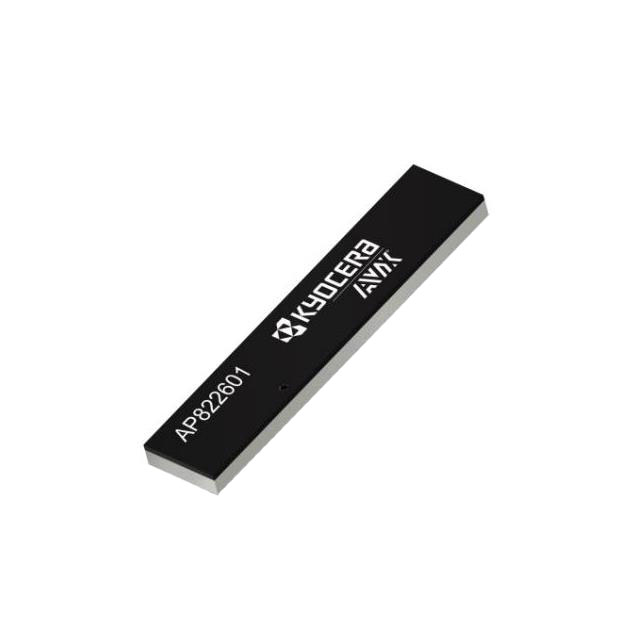

AP822601

Manufacturer :

KYOCERA AVX

Product Category :

RF Antennas

Center Frequency :

829 MHz, 1.955 GHz, 2.6 GHz, 2.35 GHz, 3.55 GHz

Impedance :

50 Ohms

Frequency (Center/Band) :

829MHz, 1.955GHz, 2.35GHz, 2.6GHz, 3.55GHz

Ingress Protection :

-

Antenna Connector Type :

-

Power Rating :

2 W

Package :

Digi-Reel?

Application :

Medical, Wearables, Smart Metering, M2M, IoT, Firstnet, Automotive, Healthcare, POS, Tracking

Product :

Indoor Antennas

Antenna Type :

Chip

Features :

-

Termination :

Solder

Cable Type :

-

Series :

A

Height (Max) :

0.130" (3.30mm)

Termination Style :

SMD/SMT

Length :

49.6 mm

VSWR :

2.5, 3

Height :

3.3 mm

Applications :

ISM, LoRaWAN, LPWA, LTE, NB-IoT, Sigfox, Wi-Fi

Frequency Group :

Wide Band

Power - Max :

2 W

Minimum Operating Temperature :

- 55 C

Bandwidth :

262 MHz, 490 MHz, 200 MHz, 100 MHz, 500 MHz

RF Family/Standard :

Cellular, General ISM, WiFi

Number of Bands :

5

Mounting Style :

PCB Mount

Frequency Range :

698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz

Subcategory :

Antennas

Return Loss :

-

Product Status :

Active

Mounting Type :

Surface Mount

Cable Length :

-

Polarization :

Linear

Gain :

2.6dBi, 4.4dBi, 1.8dBi, 3.4dBi, 2.8dBi

Product Type :

Cellular Antennas - GSM, LTE, 2G/3G/4G/5G

Style :

Chip

Width :

8 mm

Maximum Operating Temperature :

+ 125 C
