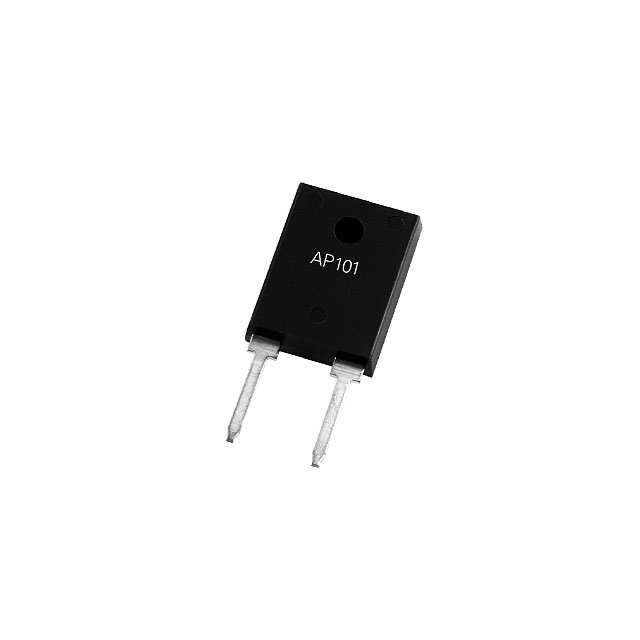

AP101 12R F
Or copy the link below:
- Mfr.Part #
- AP101 12R F
- Manufacturer
- Ohmite
- Package / Case
- TO-247-2
- Datasheet
- Download
- Description
- RES 12 OHM 1% 100W TO247
- Stock
- 79
- In Stock ：
- 79
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Ohmite
- Product Category :
- Through Hole Resistors
- Packaging :
- Tube
- Tolerance :
- 1 %
- Lead Diameter :
- 3.45 mm
- Power (Watts) :
- 100W
- Product Type :
- Thick Film Resistors
- Mounting Style :
- PCB Mount
- RoHS :
- Details
- Maximum Operating Temperature :
- + 175 C
- Termination Style :
- Radial
- Height - Seated (Max) :
- 0.825 (20.96mm)
- Package :
- Tube
- Manufacturer :
- Ohmite
- Minimum Operating Temperature :
- - 65 C
- Product Status :
- Active
- Operating Temperature :
- -65°C ~ 175°C
- Series :
- AP101
- Product Category :
- Thick Film Resistors - Through Hole
- Lead Spacing :
- 9.9 mm
- Features :
- Non-Inductive Resistors
- Failure Rate :
- -
- Product :
- High Power Resistor
- Composition :
- Thick Film
- Subcategory :
- Resistors
- Height :
- 20.44 mm
- Technology :
- Thick Film
- Supplier Device Package :
- TO-247
- Number of Terminations :
- 2
- Length :
- 15.49 mm
- Package / Case :
- TO-247-2
- Power Rating :
- 100 W
- Resistance :
- 12 Ohms
- Brand :
- ARCOL / Ohmite
- Temperature Coefficient :
- 100 PPM / C
- Size / Dimension :
- 0.620 L x 0.195 W (15.75mm x 4.95mm)
- Application :
- High Power
- Width :
- 4.69 mm
- Voltage Rating :
- 700 V
- Datasheets
- AP101 12R F
12 Ohms, 100W, Thick Film,
