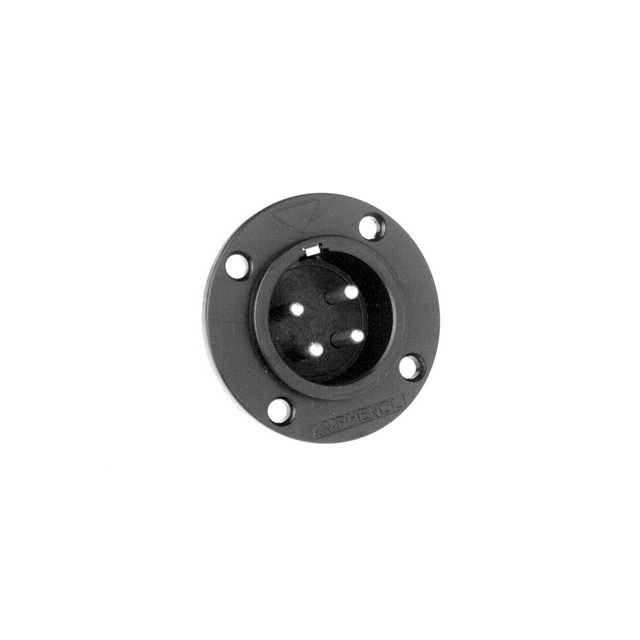

AP-5-14
Or copy the link below:
- Mfr.Part #
- AP-5-14
- Manufacturer
- Amphenol Audio
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT MALE 5P TIN SOLDER CUP
- Stock
- 25,578
- In Stock ：
- 25,578
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Audio
- Product Category :
- Circular Connector Assemblies
- Material Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 12 Weeks
- Fastening Type :
- Latch Holder
- Published :
- 2012
- Contact Material :
- Brass
- Current Rating :
- 20A
- Gender :
- Male
- Color :
- Black
- Mounting Feature :
- Flange
- Shielding :
- Unshielded
- Applications :
- Audio
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Min Operating Temperature :
- -25°C
- Orientation :
- Keyed
- Series :
- AP
- Max Operating Temperature :
- 75°C
- Length :
- 31.8mm
- Termination :
- Solder Cup
- Operating Temperature :
- -25°C~75°C
- Mounting Type :
- Panel Mount
- Housing Material :
- Thermoplastic
- RoHS Status :
- ROHS3 Compliant
- Voltage - Rated :
- 200V
- Shell Material :
- Polyphenylene Ether (PPE), Modified
- Connector Type :
- Receptacle, Male Pins
- Ingress Protection :
- IP40
- Diameter :
- 50.8mm
- Mount :
- Panel
- Shell Finish :
- Black
- Number of Positions :
- 5
- Insert Material :
- Polybutylene Terephthalate (PBT)
- Contact Finish - Mating :
- Tin
- Current Rating (Amps) :
- 20A
- Contact Plating :
- Tin
- Datasheets
- AP-5-14
Receptacle, Male Pins Polyphenylene Ether (PPE), Modified Panel Mount 5 Positions Solder Cup Tin Black Keyed Latch Holder
AP-5-14 Overview
The product is packaged in Receptacle, Male Pins.This device is mounted in the Panel Mount position.There is a product in the AP Series.When the temperature is below 75°C, it is best to use it.A minimum operating temperature of -25°C is required for this device.Part Panel is mounted to the part.As a result, the device runs at -25°C~75°C Operating Temperature.
AP-5-14 Features
AP series
AP-5-14 Applications
There are a lot of Amphenol Sine Systems Corp
AP-5-14 Circular Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
