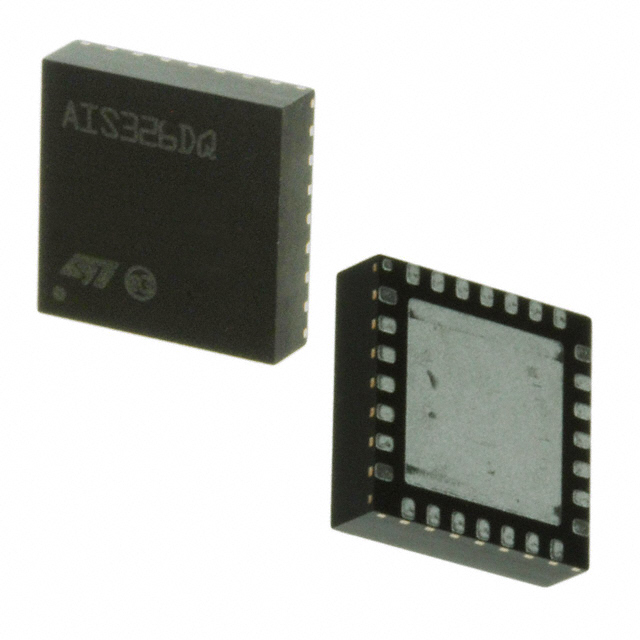

AIS326DQTR

Manufacturer :

STMicroelectronics

Product Category :

Motion Sensors - Accelerometers

Power Supplies :

3.3V

Factory Lead Time :

24 Weeks

Supply Voltage-Max (Vsup) :

3.6V

HTS Code :

8542.39.00.01

Output Type :

I2C, SPI

Length :

7mm

Lifecycle Status :

NRND (Last Updated: 7 months ago)

Package / Case :

28-QFN Exposed Pad

Number of Terminations :

28

Feature :

Adjustable Bandwidth, Selectable Scale

RoHS Status :

ROHS3 Compliant

Bandwidth :

10Hz ~ 640Hz

Interface :

I2C, SPI

Axis :

X, Y, Z

Height Seated (Max) :

1.9mm

Terminal Pitch :

0.8mm

Resolution :

1.5 B

ECCN Code :

EAR99

Lead Free :

Lead Free

Mount :

Surface Mount

Radiation Hardening :

No

Peak Reflow Temperature (Cel) :

260

Mounting Type :

Surface Mount

Number of Pins :

28

Packaging :

Tape and Reel (TR)

Type :

Digital

Contact Plating :

Tin

Supply Voltage-Min (Vsup) :

3V

JESD-609 Code :

e3

Number of Functions :

1

Pin Count :

28

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Base Part Number :

AIS326

Operating Temperature :

-40°C~105°C TA

Sensitivity (LSB/g) :

1024 (±2g) ~ 340 (±6g)

Acceleration Range :

±2g, 6g

Depth :

7mm

Supply Voltage :

3.3V

Nominal Supply Current :

670μA

Terminal Position :

QUAD

Voltage - Supply :

3V~3.6V
