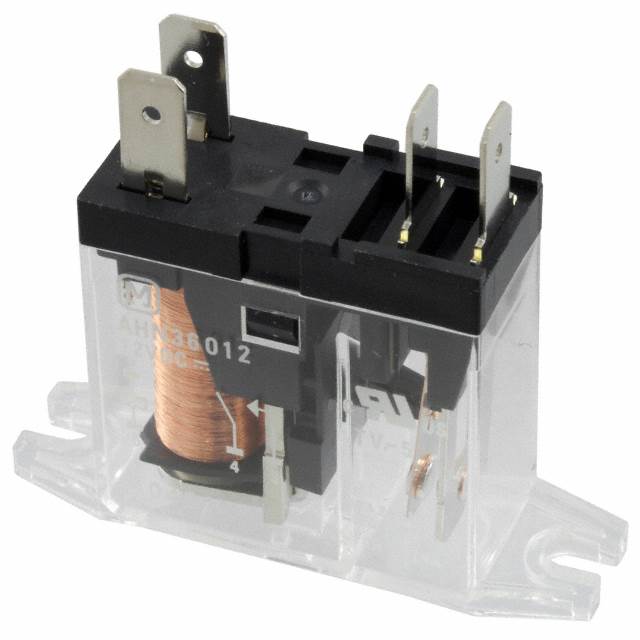

AHN36012

Manufacturer :

Panasonic

Product Category :

Power Relays, Over 2 Amps

ECCN Code :

EAR99

Coil Voltage (DC) :

12V

Published :

2007

Termination :

Quick Connect

Body Height :

30mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Radiation Hardening :

No

Coil Current :

44.4mA

Contact Material :

Silver Tin Oxide (AgSnO)

Max Voltage Rating (AC) :

250V

Relay Type :

GENERAL PURPOSE

Operate Time :

15ms

Termination Style :

Quick Connect - 0.187 (4.7mm)

Switching Voltage :

250VAC 30VDC -Max

Electrical Life :

100000 Cycle(s)

Series :

AHN

Weight :

19g

Length :

45mm

Must Release Voltage :

1.2VDC

Contact (DC) Max Rating R Load :

16A@30VDC

Coil Resistance :

270Ohm

Relay Action :

Momentary

Coil Voltage :

12VDC

Contact (AC) Max Rating R Load :

16A@250VAC

Must Operate Voltage :

8.4VDC

Factory Lead Time :

12 Weeks

Lead Free :

Lead Free

Max Current Rating :

16A

Number of Pins :

4

Release Time :

5ms

Max Voltage Rating (DC) :

30V

Throw Configuration :

SPST

Reference Standard :

UL

Coil Type :

Non Latching

Contact Form :

SPST-NO (1 Form A)

Packing Method :

Box

Packaging :

Bulk

RoHS Status :

RoHS Compliant

Mounting Type :

Chassis Mount

Coil/Input Supply Type :

DC

Body Breadth :

13 mm

Power Consumption :

530mW

Operating Temperature :

-40°C~70°C

Mount :

Flanges

Contact/Output Supply Type :

AC/DC
