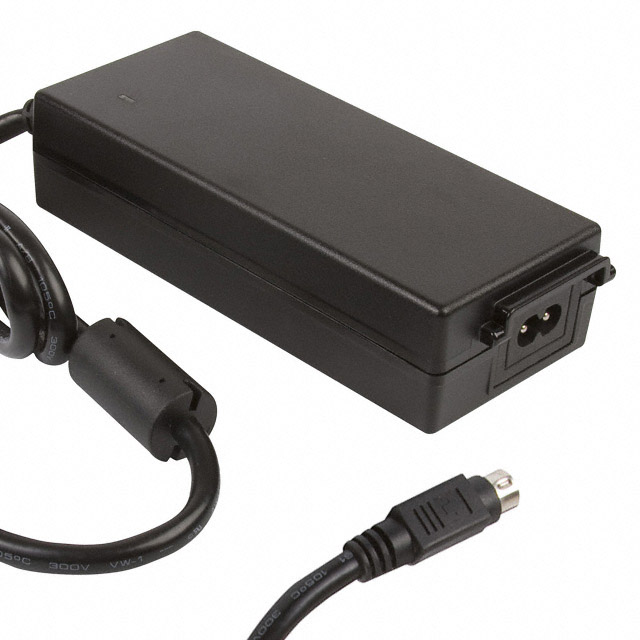

AHM85PS12C2-8

Manufacturer :

XP Power

Product Category :

Operating Temperature :

0°C~60°C

No Load Power Consumption :

500mW Max

Output Current :

7.08A

Max Power Dissipation :

85W

Current - Output 1 :

7.08A

Weight :

0.882lb 400.07g

Voltage - Input :

80V~264VAC

Mount :

Desktop

Series :

AHM85 (85W)

Published :

2011

Applications :

ITE (Commercial), Medical

Size / Dimension :

5.90Lx2.52W x 1.45 H 150.0mmx64.0mmx37.0mm

Max Output Power :

85W

Output Connector :

Power DIN, 4 Pin

Voltage - Output 1 :

12V

Min Input Voltage :

80V

Output Power :

85W

Form :

Desktop (Class II)

Input Connector :

IEC 320-C8

Region Utilized :

International

Input Type :

Cord (Sold Separately)

Nominal Output Voltage :

12V

Approval Agency :

CB, TUV, UL

Min Input Voltage (AC) :

80V

Max Output Current :

7.08A

Cord Length :

35.4 0.9m

Efficiency :

Level V

Number of Outputs :

1

REACH SVHC :

No SVHC

Max Input Voltage :

264V

RoHS Status :

ROHS3 Compliant

Height :

36.83mm

Moisture Sensitivity Level (MSL) :

Not Applicable

Max Input Voltage (AC) :

264V
