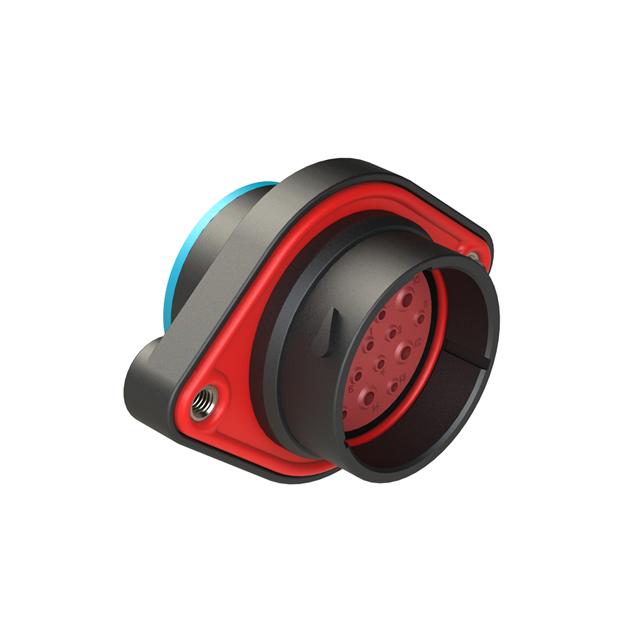

AHDP02-24-19PR-SRA

Manufacturer :

Amphenol Sine Systems

Product Category :

Circular Connector Housings

Fastening Type :

Bayonet Lock

Mounting Angle :

Straight

Contact Gender :

Pin (Male)

Mating Cycles :

100 Cycle

Product Category :

Standard Circular Connector

Features :

-

Mounting Feature :

Flange

Contact Shape :

Circular

Includes :

-

Shell Finish :

-

Manufacturer :

Amphenol

IP Rating :

IP67, IP69K

Mounting Style :

Panel

Subcategory :

Circular Connectors

Termination Style :

Crimp

Shell Size - Insert :

24-19

Base Product Number :

AHDP02

Voltage Rating :

250 V

Material Flammability Rating :

-

Current Rating :

+/- 13 A, +/- 25 A

Package :

Box

Shell Size :

24

Product Status :

Active

Diameter :

40.1 mm

Housing Gender :

FEMALE

Orientation :

Keyed

Brand :

Amphenol SINE Systems

Length :

41.8 mm

Ingress Protection :

IP67/IP69K - Dust Tight, Water Resistant, Waterproof

Contact Type :

Crimp

Operating Temperature :

-55°C ~ 125°C

Type :

For Male Pins

Series :

DuraMate? PanelMate? AHDP

Housing Material :

Thermoplastic (TP)

Wire Gauge :

20 AWG to 14 AWG, 14 AWG to 10 AWG

Color :

Black

RoHS :

Details

Shielding :

Unshielded

Contact Size :

12 (6), 16 (13)

Product :

Receptacles

Mating Style :

Bayonet

Product Type :

Standard Circular Connector

Shell Size, MIL :

-

Mounting Type :

Panel Mount

Note :

Contacts Not Included

Housing Color :

Black

Shell Material :

Thermoplastic

Number of Positions :

19

Shell Style :

Receptacle

Connector Type :

Receptacle Housing

Insert Material :

Thermoplastic
