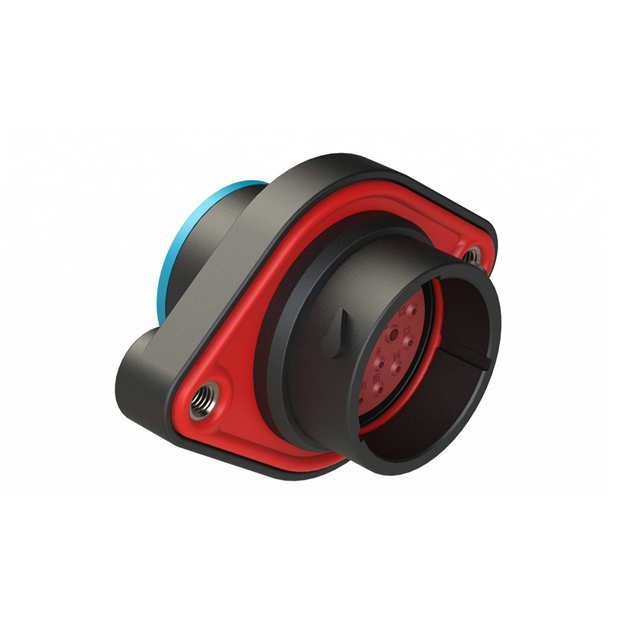

AHDP02-18-20PR-SRA

Manufacturer :

Amphenol Sine Systems

Product Category :

Circular Connector Housings

Housing Gender :

FEMALE

Contact Size :

16 (2), 20 (18)

Housing Material :

Thermoplastic (TP)

Subcategory :

Circular Connectors

Contact Gender :

Pin (Male)

Accessory Type :

-

Mounting Type :

Panel Mount

Shielding :

Unshielded

Type :

For Male Pins

Shell Size, MIL :

-

RoHS :

Details

Contact Type :

Crimp

Length :

42 mm

Product Status :

Active

Connector Type :

Receptacle Housing

Current Rating :

+/- 7.5 A, +/- 13 A

Fastening Type :

Bayonet Lock

Shell Size - Insert :

18-20

Insert Material :

Thermoplastic

Mounting Angle :

Straight

Voltage Rating :

250 V

Mating Cycles :

100 Cycle

Base Product Number :

AHDP02

Housing Color :

Black

Wire Gauge :

20 AWG to 14 AWG, 22 AWG to 16 AWG

Product :

Receptacles

Features :

-

Series :

DuraMate? PanelMate? AHDP

Contact Shape :

Circular

Operating Temperature :

-55°C ~ 125°C

Number of Positions :

20

Product Type :

Standard Circular Connector

Termination Style :

Crimp

Mating Style :

Bayonet

Shell Finish :

-

Shell Material :

Thermoplastic

Product Category :

Standard Circular Connector

Material Flammability Rating :

-

Shell Style :

Receptacle

Includes :

-

Brand :

Amphenol SINE Systems

Package :

Box

IP Rating :

IP67, IP69K

Note :

Contacts Not Included

Manufacturer :

Amphenol

Diameter :

33.8 mm

Mounting Style :

Panel

Mounting Feature :

Flange

Shell Size :

18

Ingress Protection :

IP67/IP69K - Dust Tight, Water Resistant, Waterproof

Color :

Black

Orientation :

Keyed
