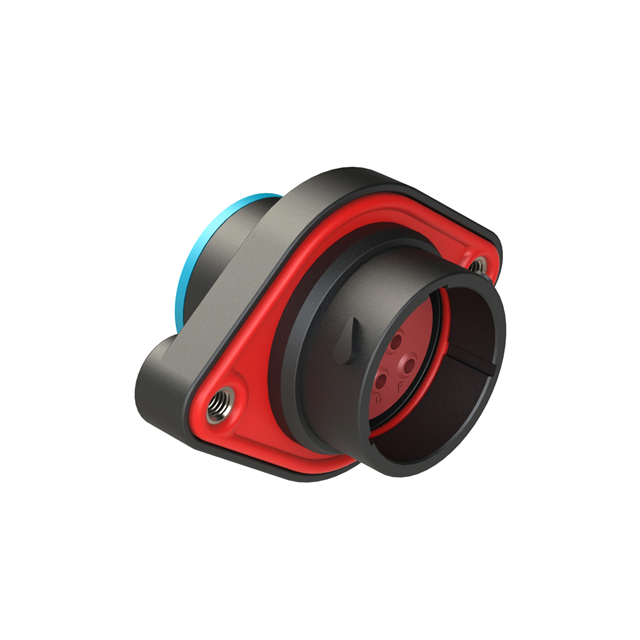

AHDP02-18-08PR-SRA
Or copy the link below:
- Mfr.Part #
- AHDP02-18-08PR-SRA
- Manufacturer
- Amphenol Sine Systems
- Package / Case
- Datasheet
- Download
- Description
- 8 POSITIONS, SEALED PANEL MOUNT
- Stock
- 90
- In Stock ：
- 90
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Sine Systems
- Product Category :
- Circular Connector Housings
- Shell Material :
- Thermoplastic
- Shell Size, MIL :
- -
- Diameter :
- 33.8 mm
- Ingress Protection :
- IP67/IP69K - Dust Tight, Water Resistant, Waterproof
- Mating Style :
- Bayonet
- Base Product Number :
- AHDP02
- Current Rating :
- 25 A
- Contact Gender :
- Pin (Male)
- Wire Gauge :
- 14 AWG to 10 AWG
- Manufacturer :
- Amphenol
- Shell Finish :
- -
- Mating Cycles :
- 100 Cycle
- Operating Temperature :
- -55°C ~ 125°C
- Product Type :
- Standard Circular Connector
- Length :
- 41.9 mm
- Accessory Type :
- -
- Product Category :
- Standard Circular Connector
- Housing Gender :
- FEMALE
- Shell Size :
- 18
- Type :
- For Male Pins
- Shell Style :
- Receptacle
- Shell Size - Insert :
- 18-8
- Package :
- Box
- Housing Material :
- Thermoplastic (TP)
- Voltage Rating :
- 250 V
- Shielding :
- Unshielded
- Mounting Type :
- Panel Mount
- IP Rating :
- IP67, IP69K
- Subcategory :
- Circular Connectors
- Product Status :
- Active
- Fastening Type :
- Bayonet Lock
- Mounting Style :
- Panel
- Color :
- Black
- Features :
- -
- Material Flammability Rating :
- -
- Contact Shape :
- Circular
- RoHS :
- Details
- Orientation :
- Keyed
- Includes :
- -
- Number of Positions :
- 8
- Mounting Angle :
- Straight
- Termination Style :
- Crimp
- Mounting Feature :
- Flange
- Contact Type :
- Crimp
- Series :
- DuraMate? PanelMate? AHDP
- Note :
- Contacts Not Included
- Insert Material :
- Thermoplastic
- Product :
- Receptacles
- Brand :
- Amphenol SINE Systems
- Housing Color :
- Black
- Connector Type :
- Receptacle Housing
- Contact Size :
- 12
- Datasheets
- AHDP02-18-08PR-SRA
AHDP02-18-08PR-SRA Documents
Receptacle Housing Thermoplastic Panel Mount 8 Positions - Keyed Bayonet Lock
AHDP02-18-08PR-SRA Overview
The product comes in a package of Receptacle Housing.Panel Mount is the type of mounting for the device.The product is a member of the DuraMate? PanelMate? AHDP Series.It operates at an operating temperature of -55°C ~ 125°C.
AHDP02-18-08PR-SRA Features
DuraMate? PanelMate? AHDP series
AHDP02-18-08PR-SRA Applications
There are a lot of Amphenol Sine Systems Corp
AHDP02-18-08PR-SRA Circular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
