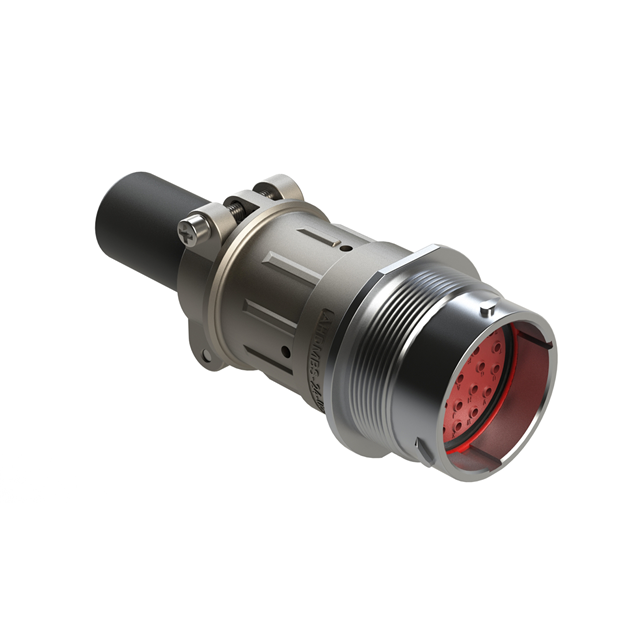

AHDM04-24-23PN-059
Or copy the link below:
- Mfr.Part #
- AHDM04-24-23PN-059
- Manufacturer
- Amphenol Sine Systems
- Package / Case
- Datasheet
- Download
- Description
- CONN RCP HSG M 23P INLINE PNL MT
- Stock
- 203
- In Stock ：
- 203
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Sine Systems
- Product Category :
- Circular Connector Housings
- Product Type :
- Standard Circular Connector
- Current Rating :
- 13 A
- Mounting Style :
- Free Hanging
- Shell Finish :
- Nickel
- Connector Type :
- Receptacle Housing
- Product Category :
- Standard Circular Connector
- Series :
- DuraMate? AHDM
- Housing Material :
- Zinc
- Insert Material :
- Thermoplastic
- Contact Shape :
- Circular
- Manufacturer :
- Amphenol
- Housing Color :
- Silver
- Mounting Type :
- Free Hanging (In-Line); Panel Mount
- Includes :
- 2 pcs - 1 Connector, 1 Backshell
- Contact Gender :
- Pin (Male)
- Operating Temperature :
- -55°C ~ 125°C
- Brand :
- Amphenol SINE Systems
- Ingress Protection :
- IP67/IP69K - Dust Tight, Water Resistant, Waterproof
- Shell Style :
- Receptacle
- Material Flammability Rating :
- -
- Subcategory :
- Circular Connectors
- Number of Positions :
- 23
- Note :
- Contacts Not Included; Jam Nut Not Included
- Contact Size :
- 16
- Wire Gauge :
- 20 AWG to 14 AWG
- Shell Material :
- ZINC ALLOY
- Product :
- Connectors
- Termination Style :
- Crimp
- Voltage Rating :
- 250 V
- IP Rating :
- IP67, IP69K
- Base Product Number :
- AHDM04
- RoHS :
- Details
- Tradename :
- DuraMate
- Mating Style :
- Bayonet
- Orientation :
- Keyed
- Accessory Type :
- -
- Type :
- For Male Pins
- Shell Size, MIL :
- -
- Shell Size :
- 24
- Contact Type :
- Crimp
- Product Status :
- Active
- Mating Cycles :
- 100 Cycle
- Shielding :
- Unshielded
- Package :
- Box
- Shell Plating :
- Nickel
- Mounting Angle :
- Straight
- Fastening Type :
- Bayonet Lock
- Features :
- Backshell, Cable Clamp
- Mounting Feature :
- Bulkhead - Front Side Nut
- Shell Size - Insert :
- 24-23
- Datasheets
- AHDM04-24-23PN-059
Receptacle Housing Zinc Alloy Free Hanging (In-Line); Panel Mount 23 Positions Nickel Keyed Bayonet Lock
AHDM04-24-23PN-059 Overview
Currently, it is packaged in Receptacle Housing.The mounting type of the device is Free Hanging (In-Line); Panel Mount.A product of the DuraMate? AHDM Series, it belongs to the range of products of that series.-55°C ~ 125°C Operating Temperature is the default operating temperature for the device.
AHDM04-24-23PN-059 Features
DuraMate? AHDM series
AHDM04-24-23PN-059 Applications
There are a lot of Amphenol Sine Systems Corp
AHDM04-24-23PN-059 Circular Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
