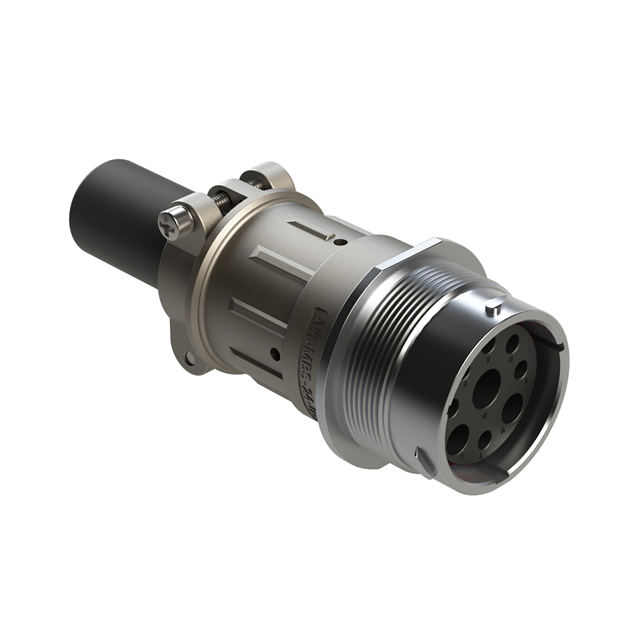

AHDM04-24-09SR-059
Or copy the link below:
- Mfr.Part #
- AHDM04-24-09SR-059
- Manufacturer
- Amphenol Sine Systems
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG F 9P INLINE PNL MT
- Stock
- 50
- In Stock ：
- 50
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Sine Systems
- Product Category :
- Circular Connector Housings
- Product Status :
- Active
- Product Type :
- Standard Circular Connector
- Mounting Feature :
- Bulkhead - Front Side Nut
- Shell Finish :
- Nickel
- Product Category :
- Standard Circular Connector
- Voltage Rating :
- 250 V
- Manufacturer :
- Amphenol
- Shell Size - Insert :
- 24-9
- Ingress Protection :
- IP67/IP69K - Dust Tight, Water Resistant, Waterproof
- Fastening Type :
- Bayonet Lock
- Connector Type :
- Receptacle Housing
- Housing Color :
- Silver
- Operating Temperature :
- -55°C ~ 125°C
- Type :
- For Female Sockets
- Contact Type :
- Crimp
- Mounting Style :
- Free Hanging
- Shell Size :
- 24
- Number of Positions :
- 9
- Shell Material :
- ZINC ALLOY
- Termination Style :
- Crimp
- Shell Style :
- Receptacle
- RoHS :
- Details
- Package :
- Box
- Subcategory :
- Circular Connectors
- Housing Material :
- Zinc
- Note :
- Contacts Not Included; Jam Nut Not Included
- Base Product Number :
- AHDM04
- Mating Style :
- Bayonet
- Features :
- Backshell, Cable Clamp
- Contact Gender :
- Socket (Female)
- Brand :
- Amphenol SINE Systems
- Tradename :
- DuraMate
- Mounting Type :
- Free Hanging (In-Line); Panel Mount
- Includes :
- 2 pcs - 1 Connector, 1 Backshell
- Contact Size :
- 4 (1), 8 (2), 12 (6)
- Shielding :
- Unshielded
- Contact Shape :
- Circular
- Series :
- DuraMate? AHDM
- Shell Size, MIL :
- -
- Accessory Type :
- -
- Product :
- Connectors
- Orientation :
- Keyed
- Material Flammability Rating :
- -
- Mounting Angle :
- Straight
- Mating Cycles :
- 100 Cycles
- Shell Plating :
- Nickel
- IP Rating :
- IP67, IP69K
- Insert Material :
- Thermoplastic
- Datasheets
- AHDM04-24-09SR-059
AHDM04-24-09SR-059 Documents
Receptacle Housing Zinc Alloy Free Hanging (In-Line); Panel Mount 9 Positions Nickel Keyed Bayonet Lock
AHDM04-24-09SR-059 Overview
The product is packaged in Receptacle Housing.This device is mounted in the Free Hanging (In-Line); Panel Mount position.There is a product in the DuraMate? AHDM Series.As a result, the device runs at -55°C ~ 125°C Operating Temperature.
AHDM04-24-09SR-059 Features
DuraMate? AHDM series
AHDM04-24-09SR-059 Applications
There are a lot of Amphenol Sine Systems Corp
AHDM04-24-09SR-059 Circular Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
