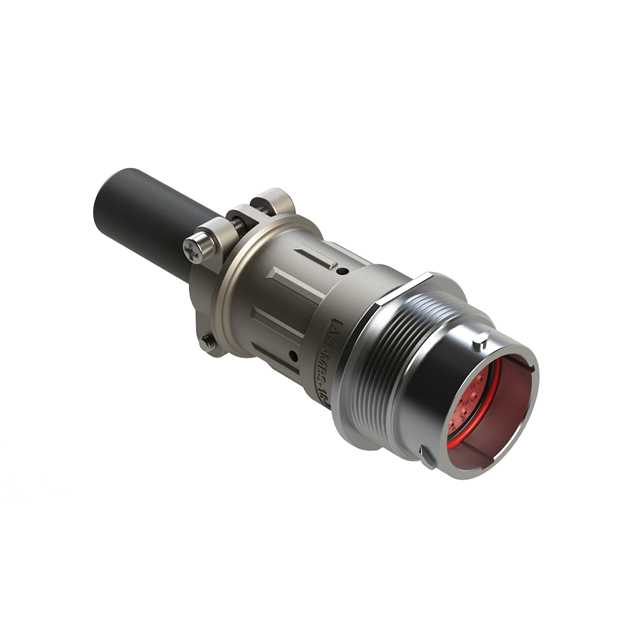

AHDM04-18-20PN-059
Or copy the link below:
- Mfr.Part #
- AHDM04-18-20PN-059
- Manufacturer
- Amphenol Sine Systems
- Package / Case
- Datasheet
- Download
- Description
- CONN RCP HSG M 20P INLINE PNL MT
- Stock
- 49
- In Stock ：
- 49
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Sine Systems
- Product Category :
- Circular Connector Housings
- Tradename :
- DuraMate
- Mounting Style :
- Cable Mount / Free Hanging
- Shell Material :
- ZINC ALLOY
- Termination Style :
- Crimp
- Series :
- DuraMate? AHDM
- RoHS :
- Details
- Connector Type :
- Receptacle Housing
- Shielding :
- Unshielded
- Product Category :
- Automotive Connectors
- Note :
- Contacts Not Included; Jam Nut Not Included
- Accessory Type :
- Backshell
- Shell Size, MIL :
- -
- Orientation :
- Keyed
- Contact Gender :
- Pin (Male)
- Product Type :
- Automotive Connectors
- Mounting Type :
- Free Hanging (In-Line); Panel Mount
- Contact Size :
- 16 (2), 20 (18)
- Features :
- Backshell, Cable Clamp
- Shell Size - Insert :
- 18-20
- Mounting Angle :
- Straight
- Type :
- For Male Pins
- Fastening Type :
- Bayonet Lock
- Brand :
- Amphenol SINE Systems
- Manufacturer :
- Amphenol
- Material Flammability Rating :
- -
- Includes :
- 2 pcs - 1 Connector, 1 Backshell
- Package :
- Box
- Product :
- Connectors
- Contact Type :
- Crimp
- Housing Material :
- Zinc
- Mounting Feature :
- Bulkhead - Front Side Nut
- Ingress Protection :
- IP67/IP69K - Dust Tight, Water Resistant, Waterproof
- Subcategory :
- Automotive Connectors
- Number of Positions :
- 20
- Shell Finish :
- Nickel
- Product Status :
- Active
- Housing Color :
- Silver
- Operating Temperature :
- -55°C ~ 125°C
- Base Product Number :
- AHDM04
- Contact Shape :
- Circular
- Insert Material :
- Thermoplastic
- Datasheets
- AHDM04-18-20PN-059
Receptacle Housing Zinc Alloy Free Hanging (In-Line); Panel Mount 20 Positions Nickel Keyed Bayonet Lock
AHDM04-18-20PN-059 Overview
The product is packaged in Receptacle Housing.This device is mounted in the Free Hanging (In-Line); Panel Mount position.There is a product in the DuraMate? AHDM Series.As a result, the device runs at -55°C ~ 125°C Operating Temperature.
AHDM04-18-20PN-059 Features
DuraMate? AHDM series
AHDM04-18-20PN-059 Applications
There are a lot of Amphenol Sine Systems Corp
AHDM04-18-20PN-059 Circular Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
