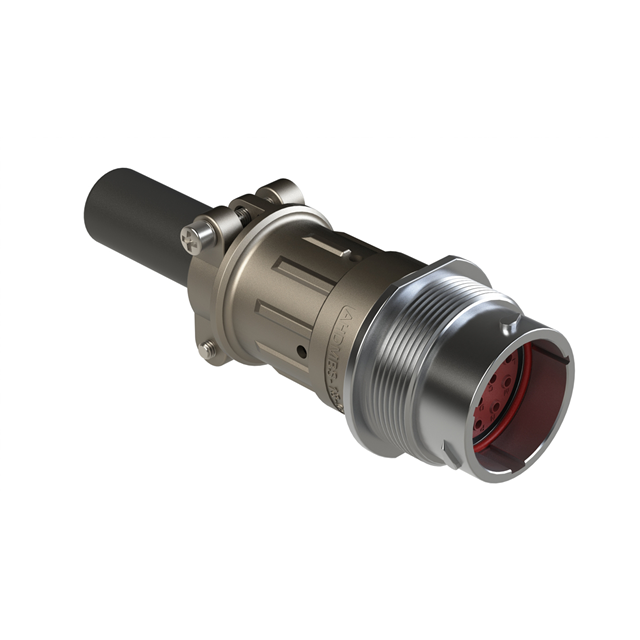

AHDM04-18-14PN-059
Or copy the link below:
- Mfr.Part #
- AHDM04-18-14PN-059
- Manufacturer
- Amphenol Sine Systems
- Package / Case
- Datasheet
- Download
- Description
- CONN RCP HSG M 14P INLINE PNL MT
- Stock
- 47
- In Stock ：
- 47
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Sine Systems
- Product Category :
- Circular Connector Housings
- Connector Type :
- Receptacle Housing
- Orientation :
- Keyed
- Series :
- DuraMate? AHDM
- Product :
- Connectors
- Brand :
- Amphenol SINE Systems
- Number of Positions :
- 14
- RoHS :
- Details
- Housing Material :
- Zinc
- Accessory Type :
- Backshell
- Ingress Protection :
- IP67/IP69K - Dust Tight, Water Resistant, Waterproof
- Tradename :
- DuraMate
- Mounting Style :
- Cable Mount / Free Hanging
- Housing Color :
- Silver
- Shell Size, MIL :
- -
- Contact Shape :
- Circular
- Base Product Number :
- AHDM04
- Shell Material :
- ZINC ALLOY
- Manufacturer :
- Amphenol
- Type :
- For Male Pins
- Contact Size :
- 16
- Contact Type :
- Crimp
- Fastening Type :
- Bayonet Lock
- Termination Style :
- Crimp
- Shell Size - Insert :
- 18-14
- Includes :
- 2 pcs - 1 Connector, 1 Backshell
- Package :
- Box
- Mounting Angle :
- Straight
- Note :
- Contacts Not Included; Jam Nut Not Included
- Features :
- Backshell, Cable Clamp
- Product Status :
- Active
- Material Flammability Rating :
- -
- Subcategory :
- Automotive Connectors
- Product Category :
- Automotive Connectors
- Shell Finish :
- Nickel
- Insert Material :
- Thermoplastic
- Shielding :
- Unshielded
- Operating Temperature :
- -55°C ~ 125°C
- Mounting Feature :
- Bulkhead - Front Side Nut
- Contact Gender :
- Pin (Male)
- Mounting Type :
- Free Hanging (In-Line); Panel Mount
- Product Type :
- Automotive Connectors
- Datasheets
- AHDM04-18-14PN-059
Receptacle Housing Zinc Alloy Free Hanging (In-Line); Panel Mount 14 Positions Nickel Keyed Bayonet Lock
AHDM04-18-14PN-059 Overview
A Receptacle Housing package is included with it.Its mounting type is Free Hanging (In-Line); Panel Mount.It is part of the DuraMate? AHDM Series of products.There is no operating temperature for the device.
AHDM04-18-14PN-059 Features
DuraMate? AHDM series
AHDM04-18-14PN-059 Applications
There are a lot of Amphenol Sine Systems Corp
AHDM04-18-14PN-059 Circular Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
