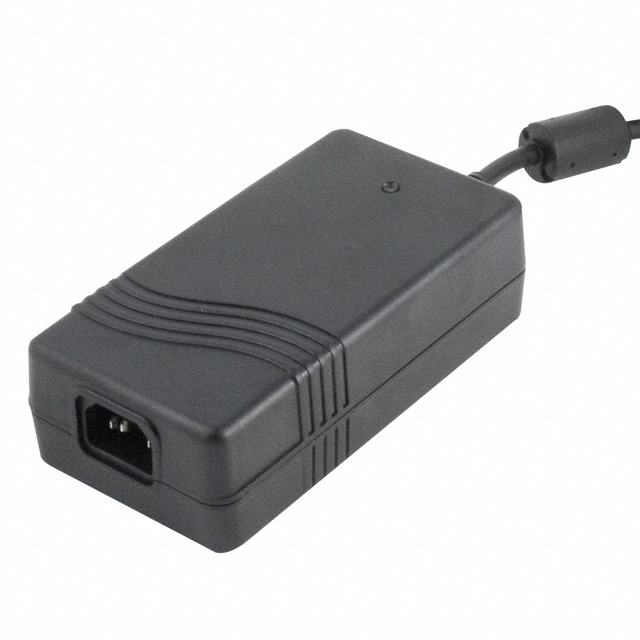

AEL80US48

Manufacturer :

XP Power

Product Category :

Nominal Output Voltage :

48V

Max Output Power :

80W

No Load Power Consumption :

500mW Max

Size / Dimension :

5.75Lx2.99W x 1.69 H 146.0mmx76.0mmx43.0mm

Input Type :

Cord (Sold Separately)

Number of Outputs :

1

RoHS Status :

ROHS3 Compliant

Length :

146.05mm

Lead Length :

1.22m

Cord Length :

48 1.22m

Frequency :

63Hz

Published :

2011

Input Connector :

IEC 320-C14

REACH SVHC :

No SVHC

Number of Pins :

5

Max Input Voltage :

264V

Voltage - Output 1 :

48V

Power (Watts) :

80W

Height :

42.926mm

Output Current :

1.66A

Max Power Dissipation :

80W

Min Operating Temperature :

-20°C

Form :

Desktop (Class I)

Moisture Sensitivity Level (MSL) :

Not Applicable

Width :

75.946mm

Min Input Voltage :

90V

Max Input Voltage (AC) :

264V

Output Connector :

DIN, 5 Pin

Max Operating Temperature :

60°C

Region Utilized :

International

Current - Output 1 :

1.66A

Weight :

1.5lbs 680.4g

Operating Temperature :

-20°C~60°C

Applications :

ITE (Commercial)

Series :

AEL80 (80W)

Efficiency :

Level V

Output Power :

80W

Max Output Current :

1.66A

Voltage - Output :

48V

Approval Agency :

CB, TUV, UL

Min Input Voltage (AC) :

90V

Power Rating :

80W

Current - Output (Max) :

1.66A

Voltage - Input :

90V~264VAC
