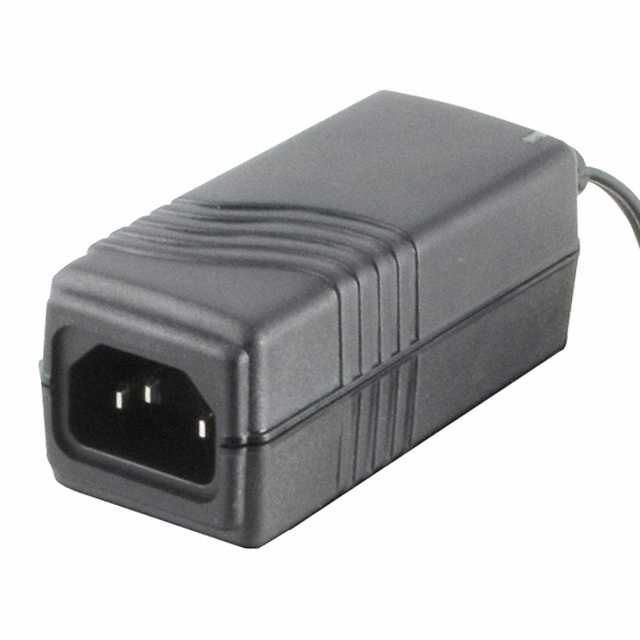

AEL15US30

Manufacturer :

XP Power

Product Category :

Input Connector :

IEC 320-C14

RoHS Status :

ROHS3 Compliant

Applications :

ITE (Commercial)

Height :

36.068mm

Voltage - Output :

30V

Voltage - Input :

90V~264VAC

Width :

38.1mm

Current - Output 1 :

500mA

Max Input Voltage :

264V

Weight :

0.364lb 165.11g

Max Power Dissipation :

15W

Series :

AEL15 (15W)

Input Type :

Cord (Sold Separately)

Frequency :

63Hz

Max Output Current :

500mA

Max Operating Temperature :

60°C

Min Input Voltage (AC) :

90V

Max Input Voltage (AC) :

264V

Length :

90.932mm

Number of Outputs :

1

Output Connector :

Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm

Moisture Sensitivity Level (MSL) :

Not Applicable

Cord Length :

48 1.22m

Published :

2005

Current - Output (Max) :

500mA

Operating Temperature :

-20°C~60°C

Voltage - Output 1 :

30V

Form :

Desktop (Class I)

Size / Dimension :

3.58Lx1.50W x 1.42 H 91.0mmx38.0mmx36.0mm

Min Operating Temperature :

-20°C

Output Current :

500mA

Power Rating :

15W

Region Utilized :

International

Polarity :

Positive

Mount :

Plug-In

Nominal Output Voltage :

30V

Approval Agency :

CB, TUV, UL

Output Power :

15W

REACH SVHC :

No SVHC

Power (Watts) :

15W

Min Input Voltage :

90V

Connector Type :

PLUG

Efficiency :

Level IV

Polarization :

Positive Center

No Load Power Consumption :

500mW Max

Lead Length :

1.22m

Max Output Power :

15W
