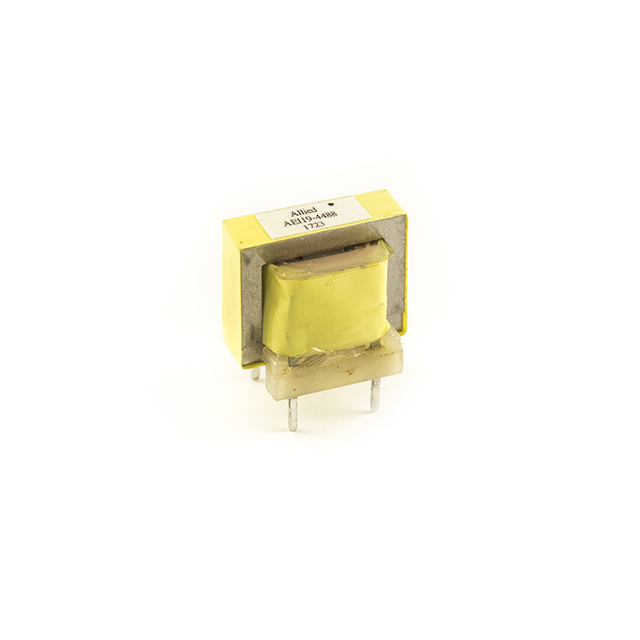

AEI19-4488
Or copy the link below:
- Mfr.Part #
- AEI19-4488
- Manufacturer
- Allied Components International
- Package / Case
- Datasheet
- Download
- Description
- 300HZ, EI19, IMPEDANCE
- Stock
- 3
- In Stock ：
- 3
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Allied Components International
- Product Category :
- Audio Transformers
- Impedance - Primary (Ohms) :
- 10kCT
- Approval Agency :
- -
- Frequency Response :
- ±0.5dB
- Series :
- -
- Voltage - Isolation :
- 1200VAC
- Termination Style :
- PC Pin
- Transformer Type :
- Impedance Matching
- Operating Temperature :
- 0°C ~ 105°C
- Height - Seated (Max) :
- 0.750" (19.05mm)
- Impedance - Secondary (Ohms) :
- 10k
- Frequency Range :
- 300Hz ~ 3.5kHz
- Insertion Loss :
- 1dB @ 1kHz Max
- Package :
- Tray
- DC Resistance (DCR) - Primary :
- 190Ohm, 380Ohm
- Turns Ratio - Primary:Secondary :
- 1:1:2
- Product Status :
- Active
- Weight :
- -
- DC Resistance (DCR) - Secondary :
- 430Ohm
- Return Loss :
- 24dB @ 300Hz ~ 3.5kHz Min
- Power Level :
- -
- Mounting Type :
- Through Hole
- Size / Dimension :
- 0.800" L x 0.670" W (20.32mm x 17.02mm)
- Datasheets
- AEI19-4488
AEI19-4488 datasheet pdf and Audio Transformers product details from Allied Components International stock available at
