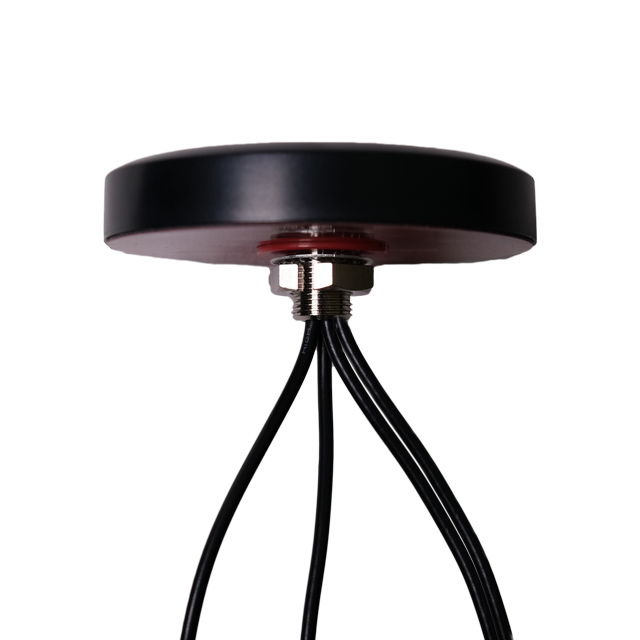

AECW0801C09S-3000S

Manufacturer :

Abracon

Product Category :

RF Antennas

RF Family/Standard :

Cellular, Navigation, WiFi

Frequency Group :

Wide Band

Mounting Style :

Direct / Permanent Mount

Minimum Operating Temperature :

- 40 C

Product :

Outdoor Antennas

Cable Type :

3 M RG174 x 3, LMR100

Applications :

Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi

Gain :

2.5dBi, 2dBic, 2.5dBi, 3dBi, 3dBi

Type :

MIMO Antenna

Impedance :

50 Ohms

Packaging :

Bulk

Frequency (Center/Band) :

829MHz, 1.5815GHz, 2.2GHz, 2.44GHz, 5.3625GHz

Diameter :

46.6 mm

Termination :

SMA Male (4)

Frequency Range :

698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.4835GHz, 4.9GHz ~ 5.825GHz

Product Type :

Multiband Antennas

Antenna Type :

Module

Height (Max) :

0.642" (16.30mm)

Maximum Operating Temperature :

+ 85 C

Center Frequency :

829 MHz, 1581.5 MHz, 2200 MHz, 2441.75 MHz, 5362.5 MHz

RoHS :

Details

Brand :

ABRACON

Ingress Protection :

IP67

Features :

Cable - 3m, LNA

VSWR :

1.5, 2, 2.5, 3

Package :

Bulk

Product Status :

Active

Length :

16.3 mm

Style :

Round

Application :

M2M, Smart City, Transportation, Smart Agriculture, Geolocation, Tracking

Mounting Type :

Screw Mount

Termination Style :

Connector

Antenna Connector Type :

SMA Male

Series :

AECW

Subcategory :

Antennas

Number of Bands :

5

Product Category :

Antennas

Manufacturer :

ABRACON

Return Loss :

-

IP Rating :

IP67
