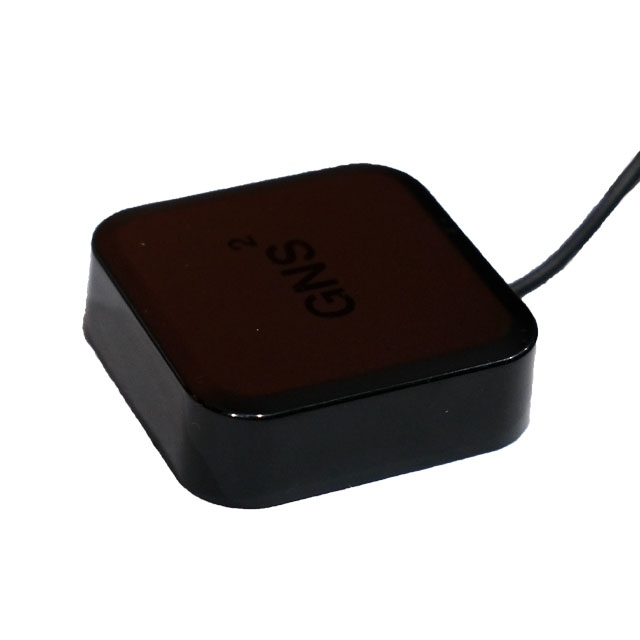

AEARBA048014-SG3

Manufacturer :

Abracon

Product Category :

RF Antennas

Operating Frequency-Min :

1559.052 MHz

VSWR :

2

VSWR-Max :

2

Minimum Operating Temperature :

- 40 C

Subcategory :

Antennas

Maximum Operating Temperature :

+ 85 C

RoHS Status :

RoHS Compliant

RoHS :

Details

Moisture Sensitivity Level (MSL) :

Not Applicable

Frequency Group :

UHF 1GHz~2GHz

Product Type :

Multiband Antennas

Construction :

Coaxial

Antenna Type :

Puck

Return Loss :

-

Width :

47 mm

Input Impedance :

50Ohm

Application :

M2M, Surveillance, Fleet Management, Asset Tracking, Autonomous Driving, Telematics, Agriculture, Instrumentation

Length :

48.5 mm

Height :

14 mm

Series :

AEAR

Product Category :

Antennas

Antenna Mounting :

Adhesive

Type :

Active Antenna

Feature :

Cable - 5m, LNA

Packaging :

Bulk

Center Frequency :

1561.098 MHz, 1575.42 MHz, 1602 MHz

Ingress Protection :

-

Cable Type :

5 M 2.7 mm RG174

Mounting Type :

Adhesive

Input Power :

-

RF Family/Standard :

Navigation

Mounting Style :

Adhesive Mount

Brand :

ABRACON

Number of Bands :

1

Characteristic Impedance :

50 Ω

Package :

Box

Frequency Range :

1.559GHz~1.610GHz

Features :

Cable - 5m, LNA

Operating Frequency-Max :

1610 MHz

Antenna Connector Type :

SMA Male

Termination :

SMA

Additional Feature :

SMA-M

Manufacturer :

ABRACON

Termination Style :

Connector

Impedance :

50 Ohms

Product :

Outdoor Antennas

Style :

Square

Gain :

5.78dBi, 4.27dBi, 5.65dBi

Frequency (Center/Band) :

1.561GHz 1.575GHz 1.602GHz

RF/Microwave Device Type :

GPS ANTENNA

Cable Length :

5 mm

Reach Compliance Code :

Compliant

Polarization :

RHCP

Height (Max) :

0.551 14.00mm

Product Status :

Active

Applications :

Beidou, Galileo, GLONASS, GNSS, GPS
