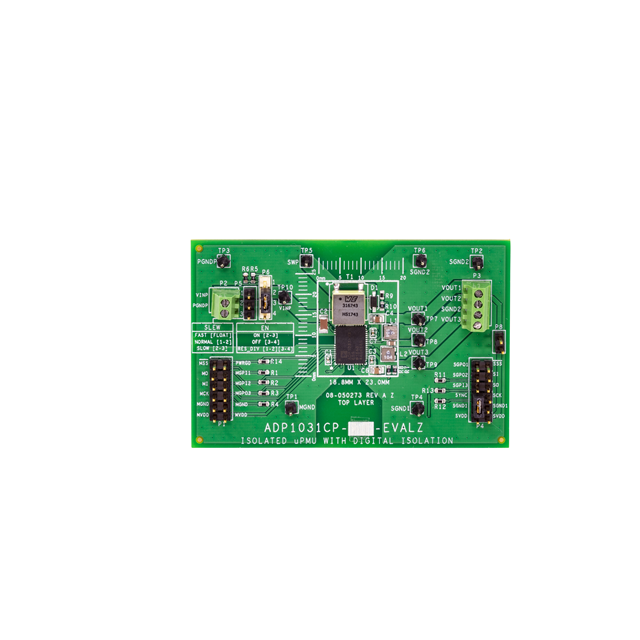

ADP1031ACPZ-4

Manufacturer :

Analog Devices, Inc.

Product Category :

Power Supply Controllers, Monitors

Maximum Power Dissipation (mW) :

216.5(Typ)

Maximum Operating Temperature :

+ 125 C

Minimum Isolation Voltage (Vrms) :

2500

Package Length :

9

Mounting :

Surface Mount

Minimum Operating Supply Voltage (V) :

4.5

Maximum Operating Supply Voltage (V) :

60

Minimum Operating Temperature :

- 40 C

Output Voltage Range :

- 24 V to 24 V

Maximum Rise Time (ns) :

2.5(Typ)

Maximum Data Rate :

100kbps

Output Type :

Logic

Packaging :

Tray

Applications :

GENERAL PURPOSE

Number of Channels per Chip :

7

Minimum Common Mode Rejection (kV/us) :

100(Typ)

Pin Count :

41

Package :

Tray

Maximum Fall Time (ns) :

2.5(Typ)

Maximum Working Insulation Voltage :

265Vp

Package Height :

0.93

Input Current :

1.77 mA

Maximum Operating Temperature (°C) :

125

Voltage - Supply :

2.3V ~ 5.5V

Supplier Device Package :

41-LFCSP (9x7)

Supplier Package :

LFCSP EP

Output Current :

300 mA

Maximum Pulse Width Distortion (ns) :

0.25(Typ)

Voltage - Input :

4.5V ~ 60V

Mounting Style :

SMD/SMT

RoHS Status :

RoHS Compliant

Maximum Quiescent Supply Current (mA) :

1.77(Typ)

Coupling Type :

Magnetic Coupling

PCB changed :

41

Input Voltage Range :

4.5 V to 60 V

HTS :

8542.39.00.01

Minimum Operating Temperature (°C) :

-40

Type :

GENERAL PURPOSE

Operating Temperature :

-40°C ~ 125°C (TJ)

Package Width :

7

ECCN (US) :

EAR99

Mounting Type :

Surface Mount

Maximum Propagation Delay Time (tPHL) (ns) :

11

Minimum Pulse Width (ns) :

100

Package / Case :

41-VFQFN Exposed Pad, CSP

Product Status :

Active

Base Product Number :

ADP1031

Maximum Propagation Delay Time (tPLH) (ns) :

11

Series :

-
