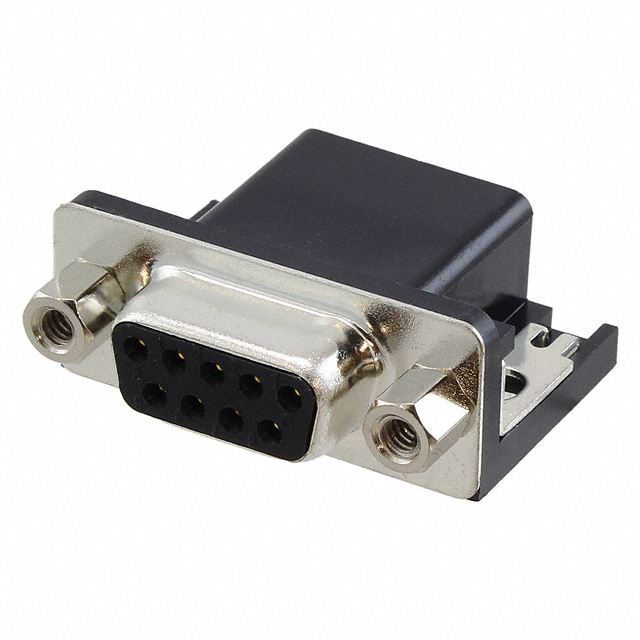

ADF09A-KG-TASB5

Manufacturer :

ASSMANN WSW Components

Product Category :

D-Sub Connector Assemblies

Shell Material, Finish :

Steel

Insulation Resistance :

1000000000Ohm

Voltage - Rated :

250V

Mount :

Through Hole

Termination :

Solder

Length - Termination :

0.145 inch

JESD-609 Code :

e4

Total Number of Contacts :

9

Packaging :

Tray

Shell Finish :

Tin

Number Of PCB Rows :

2

Reliability :

COMMERCIAL

Published :

2013

Backset Spacing :

0.590 (14.99mm)

Material Flammability Rating :

UL94 V-0

Number of Positions :

9

Dielectric Material :

Polybutylene Terephthalate (PBT), Glass Filled

Color :

Black

Contact Type :

Signal

Mounting Type :

Through Hole, Right Angle

Housing Material :

PBT

Max Operating Temperature :

125°C

Min Operating Temperature :

-55°C

RoHS Status :

ROHS3 Compliant

Connector Type :

Receptacle, Female Sockets

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current Rating :

1A

Body/Shell Style :

PLUG

Flange Feature :

Mating Side, Female Screwlock (4-40)

Number of Rows :

2

PCB Contact Pattern :

STAGGERED

Reference Standard :

UL

Rated Current (Signal) :

5A

Feature :

Board Lock

Dielectric Withstanding Voltage :

500VDC V

Shell Size, Connector Layout :

1 DE E

Factory Lead Time :

23 Weeks

Contact Material :

COPPER ALLOY

Connector Style :

D-Sub

Contact Finish :

Gold
