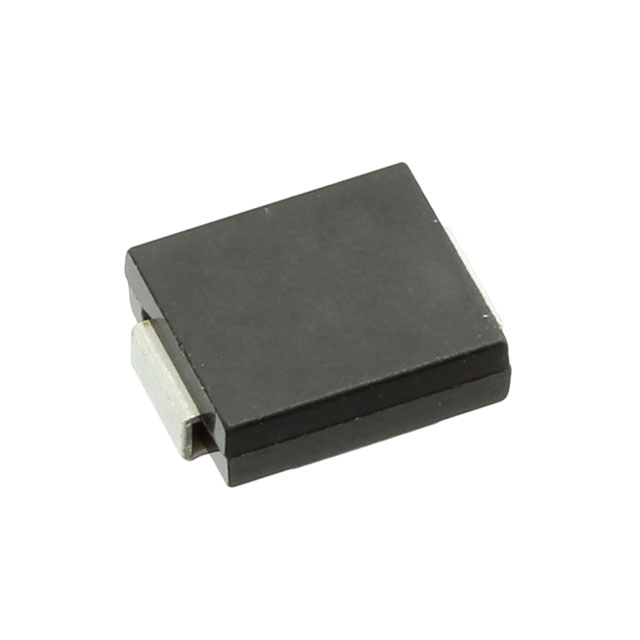

ACZRC5356B-G
Or copy the link below:
- Mfr.Part #
- ACZRC5356B-G
- Manufacturer
- Comchip Technology
- Package / Case
- DO-214AB, SMC
- Datasheet
- Download
- Description
- DIODE ZENER 19V 5W DO214AB
- Stock
- 22,253
- In Stock ：
- 22,253
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Comchip Technology
- Product Category :
- Diodes - Zener - Single
- Factory Lead Time :
- 12 Weeks
- Polarity :
- Unidirectional
- HTS Code :
- 8541.10.00.50
- Terminal Form :
- C BEND
- Packaging :
- Tape and Reel (TR)
- Voltage - Zener (Nom) (Vz) :
- 19V
- Diode Element Material :
- SILICON
- Current - Reverse Leakage @ Vr :
- 500nA @ 14.4V
- Working Test Current :
- 65mA
- Voltage Tol-Max :
- 5%
- Impedance :
- 3Ohm
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Configuration :
- Single
- Zener Voltage :
- 19V
- Voltage - Forward (Vf) (Max) @ If :
- 1.2V @ 1A
- JESD-30 Code :
- R-PDSO-C2
- Package / Case :
- DO-214AB, SMC
- Operating Temperature :
- -55°C~150°C
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Tolerance :
- ±5%
- Max Power Dissipation :
- 5W
- Reference Voltage :
- 19V
- Series :
- Automotive, AEC-Q101
- Mounting Type :
- Surface Mount
- Terminal Position :
- Dual
- Number of Elements :
- 1
- Published :
- 2014
- Diode Type :
- ZENER DIODE
- Impedance-Max :
- 3Ohm
- Mount :
- Surface Mount
- Number of Terminations :
- 2
- RoHS Status :
- ROHS3 Compliant
- Datasheets
- ACZRC5356B-G
ACZRC5356B-G Documents
ZENER DIODE 3Ohm ±5% 19V 500nA @ 14.4V -55°C~150°C 5W 2 Terminations DO-214AB, SMC
ACZRC5356B-G Overview
An electrical device such as this requires reverse leakage current of 500nA @ 14.4V.A voltage of 5% is considered to be the maximum that can be output (Tol).During operation, the maximum voltage - Zener (Nom) is reduced to 19V volts.Setting the working test voltage to 65mA is required to operate this device.As soon as the maximum voltage - Forward (Vf) is supplied, it reaches 1.2V @ 1A V.
