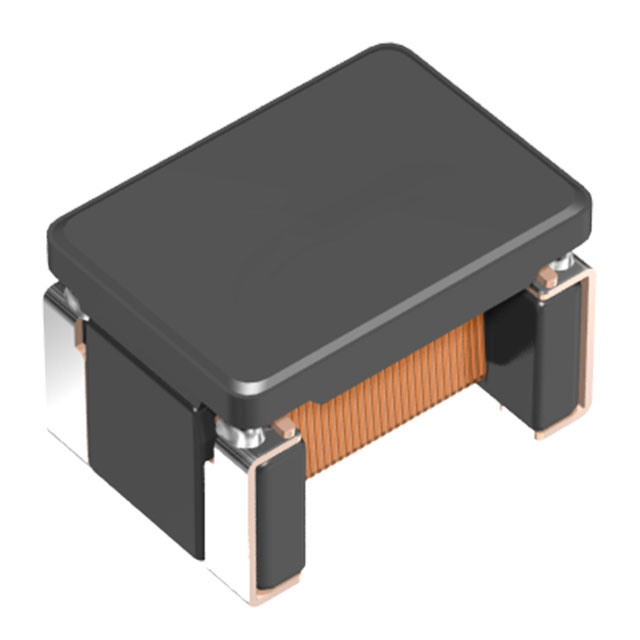

ACT45B-101-2P-TL003

Manufacturer :

TDK Corporation

Product Category :

Common Mode Chokes

Composition :

Wirewound

Height (Max) :

0.118 3.00mm

Number of Lines :

2

Test Frequency :

100kHz

Core Material :

Ferrite

Element Configuration :

Dual

Number of Pins :

4

Current Rating (Max) :

150mA

Voltage - Rated :

50V

Current Rating :

150mA

Min Operating Temperature :

-40°C

Height :

3mm

Lifecycle Status :

Production (Last Updated: 1 month ago)

Inductance :

100 µH

Self Resonant Frequency :

10MHz

Length :

4.7mm

Ratings :

AEC-Q200

Tolerance :

50%

Voltage - Rated DC :

50V

DC Resistance (DCR) (Max) :

2Ohm

Filter Type :

Signal Line

Series Resistance :

2Ohm

Width :

3.2004mm

Impedance @ Frequency :

5.8kOhms @ 10MHz

Max Operating Temperature :

150°C

Current :

150mA

Packaging :

Tape and Reel (TR)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RMS Current (Irms) :

150mA

Termination :

SMD/SMT

Operating Temperature :

-40°C~150°C

Package / Case :

Horizontal, 4 PC Pad

Max DC Current :

150mA

DC Current :

150mA

Factory Lead Time :

15 Weeks

Size / Dimension :

0.177Lx0.126W 4.50mmx3.20mm

Mount :

Surface Mount

Inductance @ Frequency :

100μH @ 100kHz

RoHS Status :

ROHS3 Compliant

Impedance :

5.8kOhm

Radiation Hardening :

No

Lead Free :

Lead Free

Mounting Type :

Surface Mount

REACH SVHC :

No SVHC

Weight :

26.988746mg

Inductance Tolerance :

-30%

Depth :

3.4mm

Series :

ACT

Case Code (Imperial) :

1812

Published :

1997
