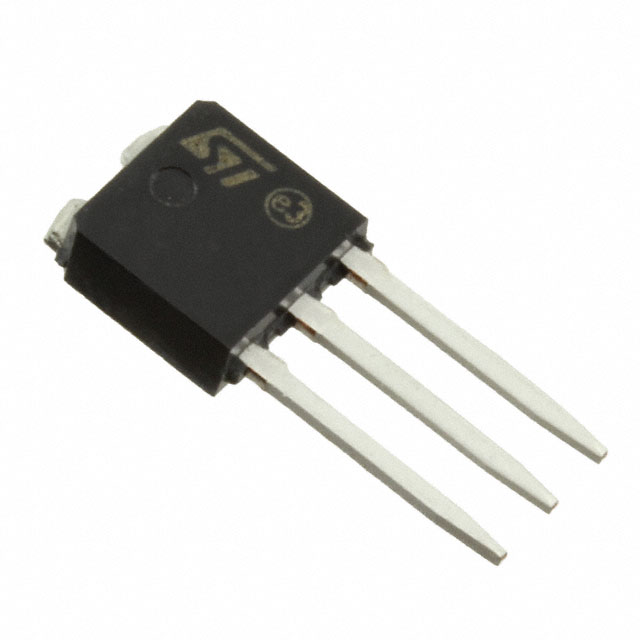

ACST4-7CH

Manufacturer :

STMicroelectronics

Product Category :

Thyristors - TRIACs

Configuration :

Single

Mounting Type :

Through Hole

Lead Free :

Lead Free

Package / Case :

TO-251-3 Long Leads, IPak, TO-251AB

Voltage - Gate Trigger (Vgt) (Max) :

1.1V

Number of Elements :

1

Number of Outputs :

1

Current - Gate Trigger (Igt) (Max) :

25mA

Trigger Device Type :

4 QUADRANT LOGIC LEVEL TRIAC

Pin Count :

3

Voltage - Off State :

700V

Number of Terminations :

3

Critical Rate of Rise of Off-State Voltage-Min :

500V/us

RoHS Status :

ROHS3 Compliant

RMS On-state Current-Max :

4A

Qualification Status :

Not Qualified

Leakage Current (Max) :

0.5mA

Current - Non Rep. Surge 50, 60Hz (Itsm) :

30A 33A

JESD-30 Code :

R-PSIP-T3

Hold Current :

35mA

Packaging :

Tube

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Base Part Number :

ACST4

Reach Compliance Code :

not_compliant

Peak Reflow Temperature (Cel) :

260

Terminal Finish :

MATTE TIN

Mount :

Through Hole

Operating Temperature :

-30°C~125°C TJ

Time@Peak Reflow Temperature-Max (s) :

40

Repetitive Peak Off-state Voltage :

700V

Triac Type :

Standard

JESD-609 Code :

e3

RMS Current (Irms) :

4A
