ACS781LLRTR-050B-T
Or copy the link below:
- Mfr.Part #
- ACS781LLRTR-050B-T
- Manufacturer
- Allegro MicroSystems
- Package / Case
- 7-PowerSMD Module
- Datasheet
- Download
- Description

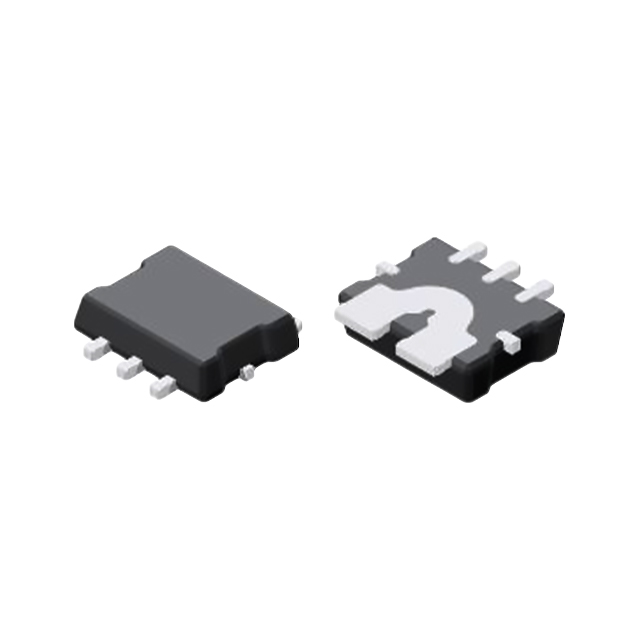

- SENSOR CUR HALL 50A 7POWERSMD
- Stock
- 3,671
- In Stock ：
- 3,671
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Allegro MicroSystems
- Product Category :
- Current Sensors
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Factory Lead Time :
- 8 Weeks
- Supply Voltage :
- 3.3V
- Package / Case :
- 7-PowerSMD Module
- Sensitivity :
- 26.4mV/A
- Published :
- 2002
- Current - Supply (Max) :
- 15mA
- Frequency :
- DC~120kHz
- Surface Mount :
- yes
- Current - Sensing :
- 50A
- Number of Terminations :
- 7
- Linearity :
- ±1%
- Analog IC - Other Type :
- ANALOG CIRCUIT
- Number of Functions :
- 1
- Polarization :
- Bidirectional
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Sensor Type :
- Hall Effect, Differential
- Operating Temperature :
- -40°C~150°C
- Response Time :
- 3.6μs
- Voltage - Supply :
- 3V~3.6V
- Accuracy :
- ±1.5%
- Packaging :
- Tape and Reel (TR)
- Terminal Form :
- Flat
- Series :
- Automotive, AEC-Q100
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- JESD-30 Code :
- R-PQFP-F7
- Width :
- 4.8mm
- RoHS Status :
- ROHS3 Compliant
- Length :
- 6.4mm
- Output :
- Ratiometric, Voltage
- Supply Voltage-Min (Vsup) :
- 3V
- Supply Voltage-Max (Vsup) :
- 3.6V
- For Measuring :
- AC/DC
- Terminal Position :
- QUAD
- Mounting Type :
- Surface Mount
- Number of Channels :
- 1
- Datasheets
- ACS781LLRTR-050B-T
Automotive, AEC-Q100 Series Hall Effect, Differential Sensor 1-Channel Bidirectional -40°C~150°C 3V~3.6V DC~120kHz 50A Accuracy-±1.5% Linearity-±1%
ACS781LLRTR-050B-T Overview
7-PowerSMD Module packages are used for the safety protection of current sensors. In order to protect these current sensors from damage, they are packaged in the Tape & Reel (TR). They should be capable of supplying a maximum current of 15mA. A 7 termination is present on the current sensors. A current sensor can supply voltage of 3.3V while working. Sensors should be configured to supply 3V voltage as the minimum voltage. It is important, however, to keep the voltage supplied by current sensors below 3.6V.
ACS781LLRTR-050B-T Features
Moisture Sensitivity Level: 3 (168 Hours)
Operating Temperature: -40°C~150°C
1 Channels
Mounting Type: Surface Mount
Sensor Type: Hall Effect, Differential
Supply Voltage: 3V~3.6V
Frequency: DC~120kHz
Sensing Current: 50A
7-PowerSMD Module Package
ACS781LLRTR-050B-T Applications
There are a lot of Allegro MicroSystems
ACS781LLRTR-050B-T Current Sensors applications.
- Industrial Monitoring and Control Systems
- Overcurrent Detection
- Frequency, Voltage, and Solar Inverters
- Electrical drives
- General purpose inverters
- AC variable speed drives
- Static converters for DC motor drives
- Battery supplied applications
- Uninterruptible Power Supplies(UPS)
- Switched Mode Power Supplies(SMPS)
