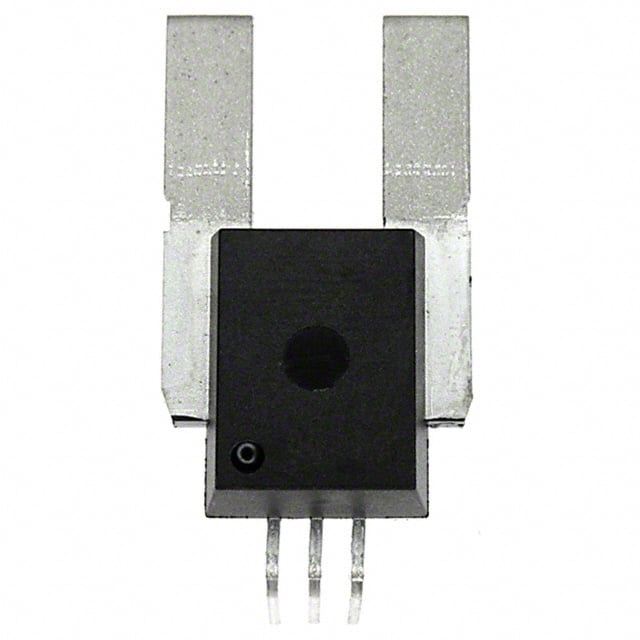

ACS755KCB-150-PSF
Or copy the link below:
- Mfr.Part #
- ACS755KCB-150-PSF
- Manufacturer
- Allegro MicroSystems
- Package / Case
- 5-CB Formed Leads, PSF
- Datasheet
- Download
- Description
- SENSOR CURRENT HALL 150A DC
- Stock
- 38,763
- In Stock ：
- 38,763
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Allegro MicroSystems
- Product Category :
- Current Sensors
- Operating Temperature :
- -40°C~125°C
- Sensor Type :
- Hall Effect, Open Loop
- Max Supply Current :
- 10mA
- Output :
- Ratiometric, Voltage
- Lead Free :
- Contains Lead
- Sensitivity :
- 26mV/A
- Accuracy :
- ±1%
- Power Supplies :
- 5V
- Response Time :
- 10μs
- Number of Pins :
- 5
- Polarization :
- Unidirectional
- Sensitivity (mV/A) :
- 26 mV/A
- Packaging :
- Bulk
- Mount :
- Through Hole
- Terminal Finish :
- Matte Tin (Sn)
- Reach Compliance Code :
- Unknown
- Package / Case :
- 5-CB Formed Leads, PSF
- JESD-609 Code :
- e3
- Linearity :
- ±0.95%
- Voltage - Supply :
- 5V
- Number of Channels :
- 1
- For Measuring :
- DC
- Mounting Type :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2008
- Current - Sensing :
- 150A
- Number of Terminations :
- 5
- RoHS Status :
- Non-RoHS Compliant
- Frequency :
- DC~35kHz
- Datasheets
- ACS755KCB-150-PSF
Hall Effect, Open Loop Sensor 1-Channel Unidirectional -40°C~125°C 5V DC~35kHz 150A Accuracy-±1% Linearity-±0.95%
ACS755KCB-150-PSF Overview
Safety measures are taken to protect the current sensors by putting them in 5-CB Formed Leads, PSF packages. For protection, these sensors are packaged in the Bulk. A current sensor's supply current should not exceed 10mA. Currently, the current sensors are terminated with 5. Currently, this sensor has 5 pins.
ACS755KCB-150-PSF Features
Moisture Sensitivity Level: 1 (Unlimited)
Operating Temperature: -40°C~125°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Hall Effect, Open Loop
Supply Voltage: 5V
Frequency: DC~35kHz
Sensing Current: 150A
5-CB Formed Leads, PSF Package
ACS755KCB-150-PSF Applications
There are a lot of Allegro MicroSystems
ACS755KCB-150-PSF Current Sensors applications.
- Overcurrent Detection
- Frequency, Voltage, and Solar Inverters
- Electrical drives
- General purpose inverters
- AC variable speed drives
- Static converters for DC motor drives
- Battery supplied applications
- Uninterruptible Power Supplies(UPS)
- Switched Mode Power Supplies(SMPS)
- Power supplies for welding applications
