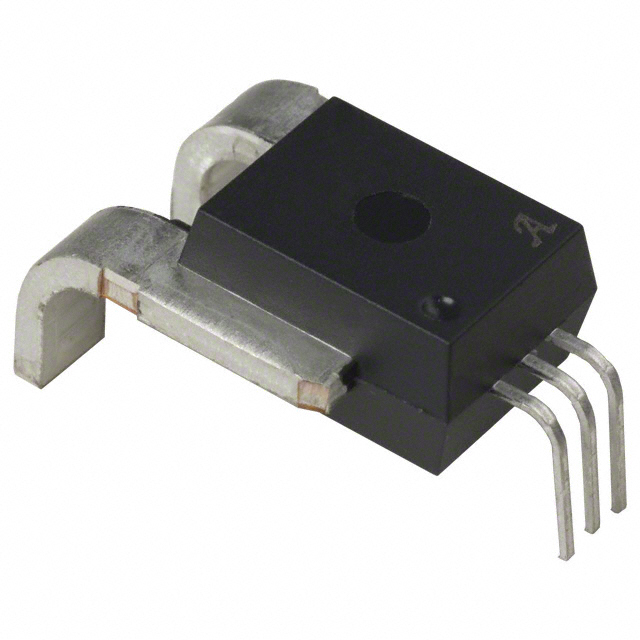

ACS750LCA-075
Or copy the link below:
- Mfr.Part #
- ACS750LCA-075
- Manufacturer
- Allegro MicroSystems
- Package / Case
- 5-CA Formed Leads
- Datasheet
- Download
- Description
- SENSOR CURRENT HALL 75A AC/DC
- Stock
- 39,024
- In Stock ：
- 39,024
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Allegro MicroSystems
- Product Category :
- Current Sensors
- Response Time :
- 27μs
- Terminal Finish :
- Matte Tin (Sn)
- Published :
- 2009
- Voltage - Supply :
- 5V
- Number of Terminations :
- 5
- Lead Free :
- Contains Lead
- Frequency :
- DC~13kHz
- Packaging :
- Tube
- Analog IC - Other Type :
- ANALOG CIRCUIT
- For Measuring :
- AC/DC
- Terminal Position :
- UNSPECIFIED
- Pin Count :
- 5
- Radiation Hardening :
- No
- Output :
- Ratiometric, Voltage
- Supply Voltage :
- 5V
- Linearity :
- ±5%
- Operating Temperature :
- -40°C~150°C
- Package / Case :
- 5-CA Formed Leads
- Accuracy :
- ±1%
- Sensitivity (mV/A) :
- 19.75 mV/A
- Current - Sensing :
- 75A
- Number of Channels :
- 1
- Sensor Type :
- Hall Effect, Open Loop
- Polarization :
- Bidirectional
- Sensitivity :
- 19.75mV/A
- Mount :
- Through Hole
- Terminal Form :
- UNSPECIFIED
- Max Supply Current :
- 10mA
- RoHS Status :
- Non-RoHS Compliant
- JESD-609 Code :
- e3
- Number of Pins :
- 5
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Functions :
- 1
- Mounting Type :
- Through Hole
- Datasheets
- ACS750LCA-075
ACS750LCA-075 Documents
Hall Effect, Open Loop Sensor 1-Channel Bidirectional -40°C~150°C 5V DC~13kHz 75A Accuracy-±1% Linearity-±5%
ACS750LCA-075 Overview
For safety reasons, the current sensors are packaged in 5-CA Formed Leads packages. In order to protect the devices from damage, these current sensors are packaged in the Tube. Current sensors should not supply more current than 10mA. There is a termination of 5 on the current sensors. This current sensor has 5 pins. While working, these current sensors can supply voltage of 5V. There are 5 pins on this electronic part.
ACS750LCA-075 Features
Moisture Sensitivity Level: 1 (Unlimited)
Operating Temperature: -40°C~150°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Hall Effect, Open Loop
Supply Voltage: 5V
Frequency: DC~13kHz
Sensing Current: 75A
5-CA Formed Leads Package
ACS750LCA-075 Applications
There are a lot of Allegro MicroSystems
ACS750LCA-075 Current Sensors applications.
- Inverter and H-bridge current measurements
- Power factor correction
- Overcurrent protection
- DC and AC power monitoring
- Closed-L oop DC- and AC-Current Sensor Modules
- Leakage Current Sensors
- Industrial Monitoring and Control Systems
- Overcurrent Detection
- Frequency, Voltage, and Solar Inverters
- Electrical drives
