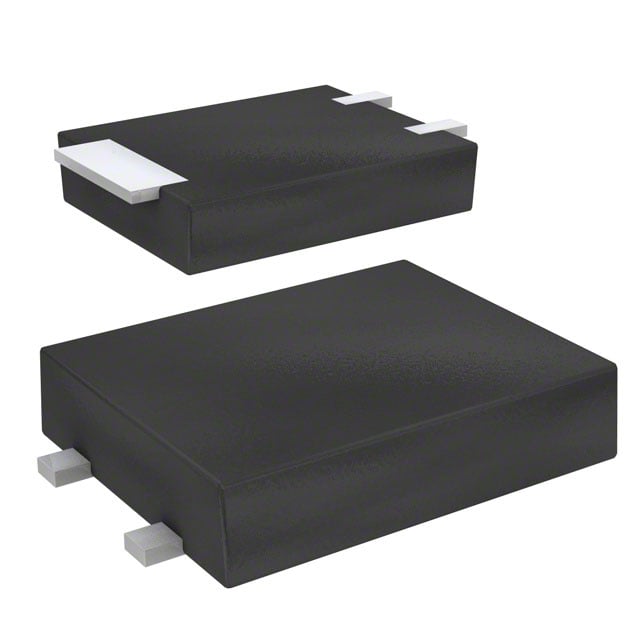

ACS108-6SUF-TR

Manufacturer :

STMicroelectronics

Product Category :

Thyristors - TRIACs

Pin Count :

3

Base Part Number :

ACS108

Time@Peak Reflow Temperature-Max (s) :

30

Radiation Hardening :

No

Current - Gate Trigger (Igt) (Max) :

10mA

Voltage - Off State :

600V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Terminations :

3

RMS Current (Irms) :

800mA

Packaging :

Tape and Reel (TR)

Mounting Type :

Surface Mount

Current - Non Rep. Surge 50, 60Hz (Itsm) :

7.3A 7.6A

Repetitive Peak Off-state Voltage :

600V

JESD-609 Code :

e3

Non-Repetitive Pk On-state Cur :

7.6 A

ECCN Code :

EAR99

On-State Current-Max :

800A

Configuration :

Single

Hold Current :

25mA

Triac Type :

Logic - Sensitive Gate

Trigger Device Type :

Triac

Package / Case :

3-SMB, Flat Lead

Terminal Finish :

Matte Tin (Sn) - annealed

Operating Temperature :

-30°C~125°C TJ

Terminal Position :

Dual

Number of Pins :

3

RoHS Status :

ROHS3 Compliant

Peak Reflow Temperature (Cel) :

260

Number of Elements :

1

Mount :

Surface Mount

Series :

ACS™/A.S.D®

Current - On State (It (RMS)) (Max) :

800mA

Voltage - Gate Trigger (Vgt) (Max) :

1V
