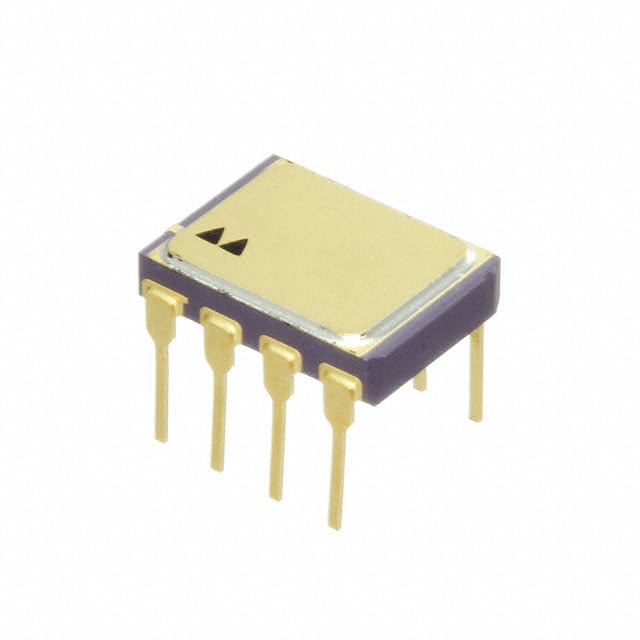

ACPL-5700L

Manufacturer :

Broadcom

Product Category :

Optoisolators - Transistor, Photovoltaic Output

Number of Elements :

1

Output Type :

Darlington

Mount :

Through Hole

Current Transfer Ratio (Min) :

200% @ 5mA

Max Output Voltage :

20V

Number of Channels :

1

Mounting Type :

Through Hole

Forward Current :

10mA

Operating Temperature :

-55°C~125°C

Current Transfer Ratio :

1500 %

Supply Voltage :

7V

RoHS Status :

ROHS3 Compliant

Voltage - Forward (Vf) (Typ) :

1.4V

Supply Voltage-Min (Vsup) :

3V

Output Current per Channel :

40mA

Number of Pins :

8

Max Power Dissipation :

200mW

Voltage - Isolation :

1500VDC

Voltage - Output (Max) :

20V

Input Type :

DC

Configuration :

Single

Reverse Breakdown Voltage :

5V

Packaging :

Tube

Optoelectronic Device Type :

LOGIC IC OUTPUT OPTOCOUPLER

Additional Feature :

OPEN COLLECTOR, HIGH RELIABILITY

Response Time :

0.00004 ns

Power Dissipation :

200mW

Package / Case :

8-CDIP (0.300, 7.62mm)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Plating :

Gold

Factory Lead Time :

12 Weeks

ECCN Code :

EAR99

Turn On / Turn Off Time (Typ) :

2μs, 6μs
