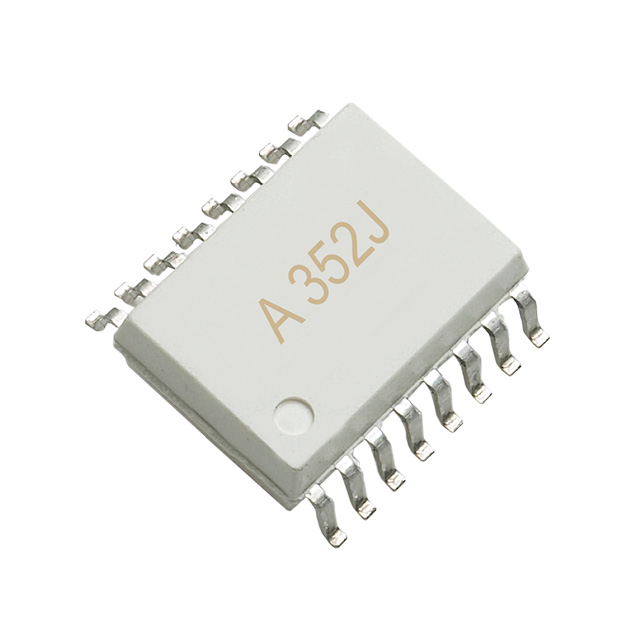

ACPL-352J-500E

Manufacturer :

Broadcom

Product Category :

Isolators - Gate Drivers

Package / Case :

16-SOIC (0.295, 7.50mm Width)

Packaging :

Tape and Reel (TR)

Peak Reflow Temperature (Cel) :

260

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current - Output High, Low :

4.5A 4.5A

Interface IC Type :

BUFFER OR INVERTER BASED PERIPHERAL DRIVER

Number of Channels :

1

Mounting Type :

Surface Mount

Voltage - Isolation :

5000Vrms

Time@Peak Reflow Temperature-Max (s) :

40

Propagation Delay tpLH / tpHL (Max) :

150ns, 150ns

RoHS Status :

Non-RoHS Compliant

Voltage - Output Supply :

15V~30V

Factory Lead Time :

17 Weeks

Current - DC Forward (If) (Max) :

25mA

Current - Peak Output :

5A

Common Mode Transient Immunity (Min) :

50kV/µs

ECCN Code :

EAR99

Rise / Fall Time (Typ) :

37ns 30ns

Operating Temperature :

-40°C~105°C

Voltage - Forward (Vf) (Typ) :

1.55V

Pulse Width Distortion (Max) :

50ns

Approval Agency :

CSA, IEC/EN/DIN, UR
